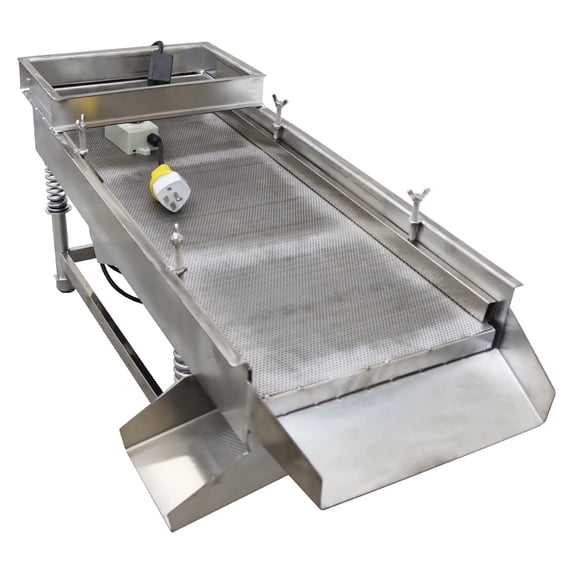

Techtongda Small Linear Screen Linear Vibrating Screen Stainless Steel Sifter Shaker Screen Machine with 2MM Mesh

Description:
This is a stainless steel vibrating screen with 2mm filter screen.
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight.
This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance.
It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.

Specifications:
Voltage: 110V
Power: 80W
Screen size: 30cm*75cm(11.8”*29.5”)
Dimensions: 33.5*13.4*15.94in(85*34*40.5cm)

Features:
1. Small volume and large screening capacity.
2. Light weight, easy to install.
3. Less energy consumption.
4. Simple structure and beautiful appearance.
5. The screen is assembled from small pieces and the replacement is very simple.

Working principle:
1. The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line.
2. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation.
3. This machine is composed of sieve box, vibration motor, vibration damping system and chassis.
4. The sieve box is composed of a sieve frame, a sieve plate, a lining plate.
5. This sieve machine adopts high-performance, high-life vibration motor.
6. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed.
7. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.

Item included(230199)：
TECHTONGDA 110V Full Stainless Steel Linear Vibrating Screen(JG30-75 2mm)
