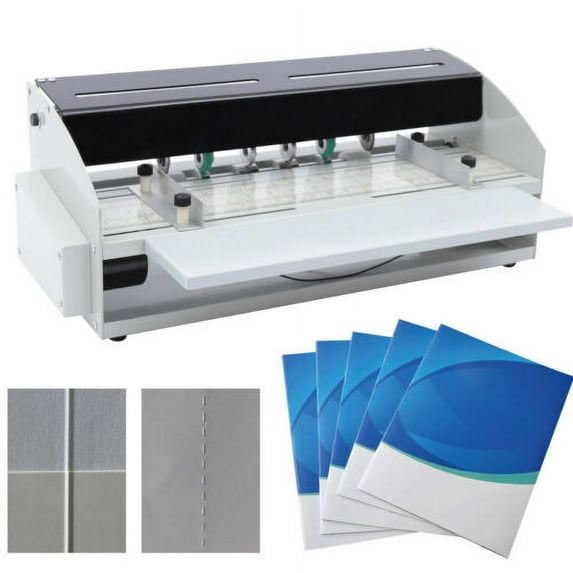

3-in-1 18 inch Creasing Electric Machine Paper Creaser Scorer Perforator Cutter

(No ratings yet)

Key item features

Great Convenience: the Electric Creasing Machine Has the Advantages of Compact Structure, Small Size, and Easy Operation. It Makes Your Creasing Work Easy and Fast.
High Efficiency: for Business Cards, Photos, Greeting Cards, Color Pages, Covers, Etc., It Can Finish One or More Folds at a Time, so It Greatly Improves the Working Efficiency.
Wide Application: It Can Easily Adjust the Creasing Pressure and Creasing Position at Will. the Adjustable Creasing Width Is Designed to Meet the Needs of Different Papers. and You Can Freely Choose Single or Multiple Creasing Blades to Work.
Good Performance: This Product Adopts Circular Creasing Technology. the Indentation Is Clear and Full, and the Paper Is Not Broken. the Custom-made Premium Paper Bearing Makes the Wheel Wobble Very Little, so Its Performance Is Guaranteed.
Stable and Low-noise: It Adopts a Synchronous Belt Drive, Which Makes the Transmission More Stable. This Not Only Ensures the Accuracy of Indentation to a Certain Extent but Also Reduces Noise Making.
Great Durability: It Adopts a Full Mechanical Steel Structure Thickened Wall Plate and Precision Thickened Spindle, so the Concentricity Is High and Not Easily Deformed. It Can Be Used for a Long Time.
3-in-1 Function: It Is Equipped with One Sawtooth Perforating Die, One Cutting Die, Two Rubber Rollers for Paper Pressing, and Two Creasing Dies, Which Can Achieve Single/Double Creasing, Cutting, and Dash Work.
High Precision: It Adopts the Way of Paper Walking by Pressure Wheel, so the Paper Walking Is Not Shifted. This Effectively Avoids the Trouble Caused by the Misalignment of the Indentation.
Easy to Disassemble: the Knife Holder Is Very Easy to Disassemble and Install and the Position Can Be Any Combination, so You Can Easily Disassemble It for Cleaning or Replacing Parts.

Specs

Paper size
18 inch
Power type
Corded Electric
Height
9.65"
Weight
21.38 lbs
Has written warranty
No
Color
Silver

Current price is $170.50

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Description
A Good Creasing Machine Can Make Your Creasing Work Twice As Effective. This Electric Creasing Machine Uses Round Creasing Technology, so the Creases Are Clear and Full and the Paper Is Not Broken. the Compact Structure, Small Size, and Easy Operation Make It Very Easy to Use. with Adjustable Width and Unlimited Length, It Can Meet Your Different Creasing Needs at Once.

Details
Longer Tray Panel: Longer Pallet Can Increase the Smoothness of Long Paper Feeding, Which Is Suitable for More Paper Needs.
Dotted Line Knife Holder: It Has a Dotted Line Knife Holder, and Can Also Cut the Dotted Line of the Document Ticket. It Can Be Said to Be Multi-purpose.
Double Spiral Design: the New Double Spiral Design Makes the Knife Holder Fixed More Stable and Positioned More Precisely, Thus Improving Working Accuracy and Safety.
L-shaped Side Gauge Design: the Unique L-shaped Side Gauge Design Makes the Product Smooth and Non-jamming. It Cooperates with the Hand Screw (Cross) to Make the Adjustment of the Left and Right Positions More Convenient.

Application
It Is Suitable for Professional Services, Office, and Personal Users. It Can Be Used to Create Documents, Labels, Rotating Color Pages, Written Covers, Cards, Photos, Invitations, Menus, Envelopes, Tickets, Etc.

Specification
Model: Qy-h500
Material: Mechanical Steel
Color: Silver
Max Feed Width: 460mm/18inch
Creasing Mode: Round Creasing Technology, Longitudinal Creasing, Unlimited Length
Number of Paper Creasing Wheels: 2 Groups
Number of Creasing Wheels: 2 Groups
Dashed Knife Configuration: 1 Group
Number of Slitting Knives: 1 Group
Power Supply: 110v, 60hz
Package Size: 58.5*27*24.5cm/23.03*10.63*9.65in
Gross Weight: 10kg/22.05lbs
Net Weight: 9.7kg/21.38lbs

How to Use
1. Plug in the Correct Power Supply, Turn It on and See If the Machine Is Running Properly. the Socket Comes with a Spare Fuse.
2. Select Different Creasing Lines As Required. Use the Tool to Adjust the Position. the Center of the Creasing Wheel Should Be Right in the Center of the Creasing Groove.
3. Check the Scale According to the Paper Size and Indentation Position.
4. Adjust the Left and Right Side Gauges.
5. Place the Trial Paper. Turn on the Power and Push the Paper over the Creasing Wheel. Adjust the Pressure As Required. Pay Attention to the Thickness of the Paper. Too Much Pressure Affects the Life of the Motor.
6. When All Is Ready, Push the Paper into the Platen to Start Working.
7. Press the Dotted Line to Replace the Corresponding Indentation Wheel or Knife Holder Installed. Adjust Certain Pressure.
A - Tool Holder Positioning Screw: Loosen the Screw, the Tool Holder Can Be Moved Left and Right to Achieve Different Sizes of Work
B - Creasing Knife Depth Adjustment Screw: Adjusting the Screw Can Realize the Switching of Different Creasing Methods and Also the Depth Adjustment of the Creasing Line
C - Creasing Slot Positioning Screw: Loosen the Screw, with the Tool Holder to Move Left and Right

Package Included
1*Electric Creasing Machine
1*Power Cord

Notes
1. Power Is Not Working: Check Whether the Power Cord Is Plugged in, Whether the Fuse Is Blown, and Whether the Socket Key Wiring Is Loose.
2. Turn on the Power, the Motor Does Not Rotate: Check Whether the Power Switch Is Energized, Whether the Motor Is Stuck, and Whether the Connection Is Loose.
3. the Pressure Wheel Does Not Rotate: Check Whether the Pressure Wheel Is Stuck, Whether the Pressure Wheel Is Too Tight, Whether the Motor Belt Is Too Loose and Slippery, and Whether the Belt Is Broken and Cannot Be Driven.

Great Convenience: the Electric Creasing Machine Has the Advantages of Compact Structure, Small Size, and Easy Operation. It Makes Your Creasing Work Easy and Fast.
High Efficiency: for Business Cards, Photos, Greeting Cards, Color Pages, Covers, Etc., It Can Finish One or More Folds at a Time, so It Greatly Improves the Working Efficiency.
Wide Application: It Can Easily Adjust the Creasing Pressure and Creasing Position at Will. the Adjustable Creasing Width Is Designed to Meet the Needs of Different Papers. and You Can Freely Choose Single or Multiple Creasing Blades to Work.
Good Performance: This Product Adopts Circular Creasing Technology. the Indentation Is Clear and Full, and the Paper Is Not Broken. the Custom-made Premium Paper Bearing Makes the Wheel Wobble Very Little, so Its Performance Is Guaranteed.
Stable and Low-noise: It Adopts a Synchronous Belt Drive, Which Makes the Transmission More Stable. This Not Only Ensures the Accuracy of Indentation to a Certain Extent but Also Reduces Noise Making.
Great Durability: It Adopts a Full Mechanical Steel Structure Thickened Wall Plate and Precision Thickened Spindle, so the Concentricity Is High and Not Easily Deformed. It Can Be Used for a Long Time.
3-in-1 Function: It Is Equipped with One Sawtooth Perforating Die, One Cutting Die, Two Rubber Rollers for Paper Pressing, and Two Creasing Dies, Which Can Achieve Single/Double Creasing, Cutting, and Dash Work.
High Precision: It Adopts the Way of Paper Walking by Pressure Wheel, so the Paper Walking Is Not Shifted. This Effectively Avoids the Trouble Caused by the Misalignment of the Indentation.
Easy to Disassemble: the Knife Holder Is Very Easy to Disassemble and Install and the Position Can Be Any Combination, so You Can Easily Disassemble It for Cleaning or Replacing Parts.
