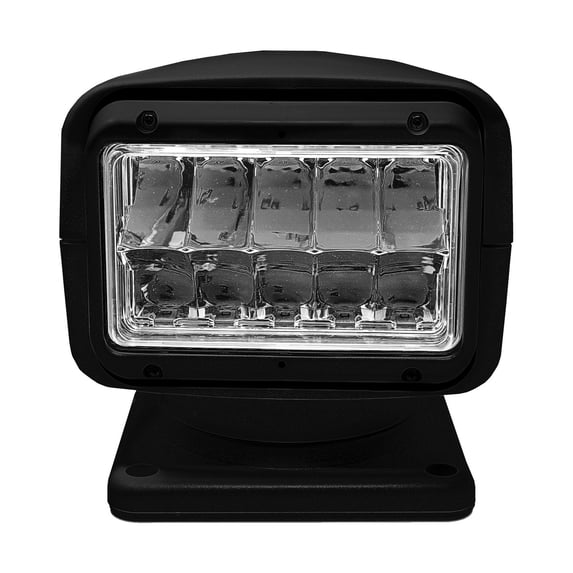

ACR Electronics MPN: 1959 ACR RCL95 Black LED Spotlight With Wired Point Pad And Wireless Hand Held 12/24v

RCL-95 LED Searchlight - 12/24V - Black

The RCL-95 LED searchlight was designed for performance and simplicity.  With an industry best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination.

The ACR RCL-95 is fitted with 10 ultra-bright OSRAM LEDs with reflector optics and 50,000-hour bulb life, which combine to produce a peak beam intensity of over 460,000 Candelas.  It casts an eight-degree beam of light over an impressive distance of 0.7 nautical miles (4,501 feet).  With 360° continuous rotation and a 135° tilt, the versatile RCL-95 also includes an auto-home feature when switched off.

The sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels.  Use either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop.  With an 8 degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys and docks a breeze.

The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off.  The RCL-95 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection.  The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Features:

• Wireless handheld remote and wired dash mount joystick (both included)
• Auto-home return when off
• Efficient, long life LEDs
• UV and weather resistant
• Simple installation

Technical Specifications:

• Color - Black
• Material - Acrylonitrile Styrene Acrylate (ASA)
• Operation - Wireless Remote Control or Dash Mount Point Pad
• Voltage Input - 12/24 VDC
• Rotation - 360° continuous
• Tilt - 135°
• Light Pattern - Spot
• Light Distance - 4,501' (1,372 M)
• Dimensions (H x W x D) - 5.9" x 7.1" x 7.5" (15 x 18 x 19 cm)
• Dimensions (Footprint Diameter) - 4.92" x 4.92" (12.5 x 12.5 cm)
• Weight - 4.2 lb  (1.9 kg)
• IP Rating - IP56 (Housing) and IP68 (LED Module)

In the Box:

• RCL-95 Searchlight (12/24 V)
• Handheld Wireless remote control
• Dash Mount Point Pad™ controller
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Bulb Watts: 50
• Candela: 460,000
• Voltage - Input Range (Volts): 12/24v
• Wireless: Yes
• LED: Yes
• Box Dimensions: 9"H x 9"W x 11"L WT: 7.3 lbs
• UPC: 791659019597
