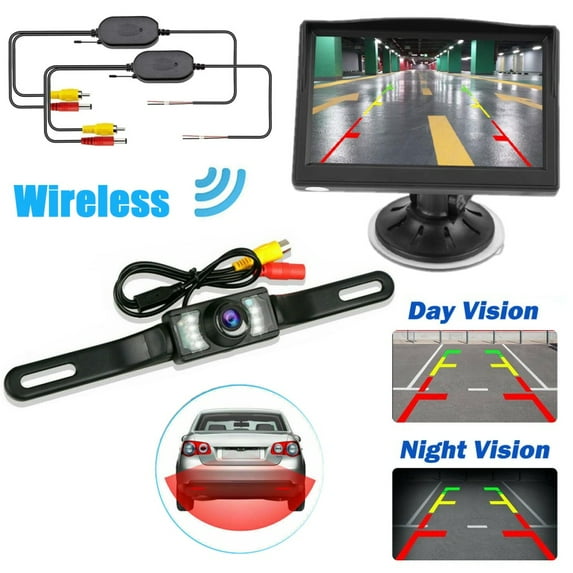

5" Wireless LCD Rearview Car Backup Camera and Monitor Reverse Assist Kit

5" Monitor Wireless Car Backup Camera Reverse Rear View Parking Rearview System


Product Features:

The backup camera screen kit can provide you with a clear rear view for your driving.

Full color TFT LCD display, Low power consumption.

Parking rearview priority, the monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car.

The monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.

Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipment.

Designed menu buttons, the brightness/contrast/hue/language is adjustable.

With 2 road video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input, the machine will prioritize the white end signal.

No Audio input or output.



Transmitter and receiver:

Take one minute get your camera become a wireless camera.

Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

The transmitter also includes a handy pass through for the power so you can connect it in line with your camera.

Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera.

Wireless receiver with male phono plug for connection to monitor.

Connects to rear-view camera and front video screen.

Fit all RCA composite video connections.



Review Camera:

Professional exterior waterproof car rear view camera.

Small compact size.

Low power consumption.

Low maintenance.

7 infrared night vision LED.

Easy to install and operate.

Perfectly solve the issue of bad car rear view effect.


Product Specification:

Color: Black (as pictures show)

Housing Material: ABS Plastic

Screen Dimension: 5 inch

Resolution: 480 x 234

Standard: PAL/NTSC

Video in: AV1/AV2

Aspect Ratio: 16:9

Power Supply: DC 12V

Brightness: 300 nits

Contrast: 250:1



Transmitter and receiver

Work Range: Up to about 10m

Power: DC 12V


Review Camera

Sensor: PC1030 1/3 Inch Color CMOS

TV system: NTSC

Effective pixels: 628 X 582 pixels

Scanning System: 2:1 Interlace

Sync System: Internal

Resolution: 420 TV lines

Lens Angle: 2.8mm/120° - 1.8mm/170°

Sensor Area: 5.961mm x 4.276mm

Video Output: 1.0 VP-P,75 OHM

S/N Ratio: More than 48db

Water-proof: IP67

Minimum 111umination: 0.2Lux/F1.8(0Lux with LED)

Power supply: DC 12V

Operation Temperature: -20℃-60℃ (RH95%Max.)

Storage Temperature: -30℃-60℃ (RH95%Max.)



Package includes:

1 x 5.0 Inch Monitor

1 x Power cable

1 x 2.4G Wireless Audio Video AV Transmitter

1 x 2.4G Wireless Audio Video AV Receiver

1 x Car Rear View Camera

2 x Base Bracket
