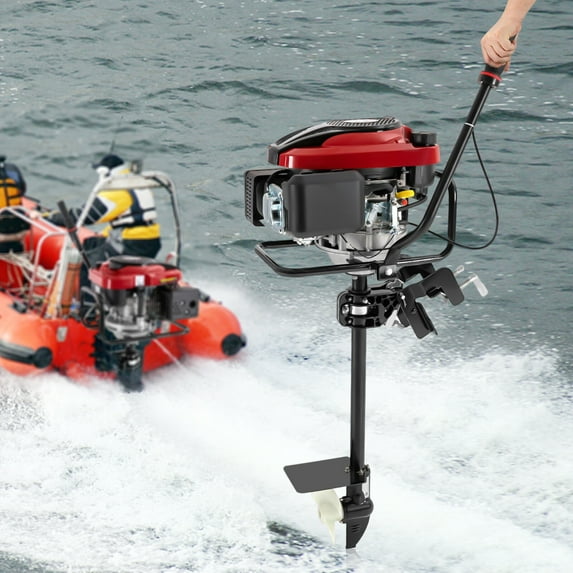

8 HP 4-Stroke Outboard Motor Fishing Boat Engine Air-Cooling TCI Gasoline 196CC Black
Key item features
- Robust Construction: Crafted from high-quality aluminum alloy, stainless steel screws, and engineering plastics, ensuring high hardness, anti-corrosion, and anti-rust properties for extended durability.
- Powerful Performance: Features an 8 HP, 4-stroke engine with a 196CC capacity, reaching speeds of up to 4500 rpm for efficient and fast propulsion.
- Effortless Operation: Equipped with a strong manual recoil start, requiring only 1-2 pulls, and a push-button latch for easy access to the motor.
- Compact Portability: With a total length of 3.47ft and a net weight of 61.73 lbs, this motor is designed for easy transport and storage.
- Efficient Cooling: The engine housing incorporates multiple heat sinkholes for rapid heat dissipation, preventing overheating and prolonging engine life.
- Versatile Application: Suitable for various small boat types, including inflatable, iron, plastic, fiberglass, and wooden boats, with a load capacity of approximately 1 ton.
- Optimized Fuel System: Includes a 1.5L fuel tank and a 0.6L oil tank, consuming 1.55L/H, and operates on normal unleaded gasoline with TCI ignition.
- Precise Steering: Offers a 360-degree steering function for enhanced maneuverability and ease of control during navigation.
Specs
- Horsepower8 HP
- Boat motor typeOutboard Boat Motors
- Engine displacement196 cc
- Cooling systemAir Cooled
- Motor starter typePull Cord Start
- Boat typeFishing
More seller options (1)
About this item
Product details
Description
This product has a strong power of 8HP with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 360-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. It will be your most powerful assistant when you are sailing at sea.
Specification
Material: Aluminium Alloy, Stainless Steel Screws, Industrial Plastic
Color: Black
Type: 4-stroke 8 HP
Capacity: 196CC/11.96cu.in
Cooling System: Air Cooling
Cylinder Bore Stroke: 70*51mm/2.76*2.01in
Power Transmission Method: Gear Transmission Method
Compression Ratio: 8.4:1
Fuel Tank Volume: 1.5L/0.4gal
Recommended Fuel: Normal Unleaded Gasoline
Oil Tank Volume: 0.6L/0.16gal
Gear Oil Volume: 0.1L/0.02gal
Fuel Consumption: 1.55L/H / 0.41gal/H
Idle Speed: 1800 + 500 rpm
Net Torque Speed: 10.5N.m(7.7ibf.ft)2500rpm
Rev: 4500r/min
Ignition System: TCI
Starting Method: Hand-pull Recoil
Suitable Vertical Height of Stern Plate: 40-55cm/15.75-21.65in
Overall Height: 1.06m/3.47ft
Host Length: 33cm/12.99in
Length from Handle to Baffle: 50cm/19.68in
Propeller Part Length: 23cm/9.05in
Gross Weight: 31kg/ 68.34 lbs
Net Weight: 28kg/ 61.73 lbs
Package Size: 116*37*46cm/45.67*14.57*18.11 in
Package Included
1 * 4 Stroke 8HP Outboard Motor Boat Engine
1 * Chinese Manual
All Accessories for Installation
Application
This product is suitable for small boats of different materials (such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats), and is applicable to water operations in rivers, lakes, reservoirs, fish ponds, etc. It is suitable for boats with a load of about 1 ton/2205lbs.
Notes
Gasoline is prone to oxidation and degradation when stored, and using degraded gasoline will block the oil circuit and cause difficulty in starting. If the engine is not used for more than half a month, please empty the fuel in advance.
Please add gear oil to the gears before using the motor and replace gear oil after the run-in period（10 hours).
Please check the oil condition of the four-stroke machine for the first 5 hours of use, and then check the oil and air filter before each use.
After using it in salt water, it must be washed immediately with clean water.
Please store the engine upright with the engine facing upwards, not upside down. Otherwise, the oil may flow into the engine combustion chamber and cause engine damage.
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
- High-quality Material: This product is made of high-quality aluminum alloy body, stainless steel screws, and engineering plastics, which has high hardness, anti-corrosion, and anti-rust performance, and is uneasy to bend to effectively extend the service life of the product.
- Powerful Power: The engine is a 4-stroke 8hp engine, and the speed can reach 4500rpm. Powerful power can let you drive quickly and save a lot of time and energy.
- Easy to Operate: This product has a strong manual start function, you only need to pull 1/2 pull rope to start. It is easy to pull off the engine cover with a push button latch for quick access to the motor.
- Easy to Carry: The total length of the product is only 3.47ft and the weight is only 61.73 lbs. It is very easy to carry and store.
- Fast Heat Dissipation: The engine housing has many heat sinkholes. It helps to dissipate heat quickly and prevent the engine from burning up after a long time use, which can effectively extend the life of the engine.
Specifications
Horsepower
Boat motor type
Engine displacement
Cooling system
Warranty
Warranty information
