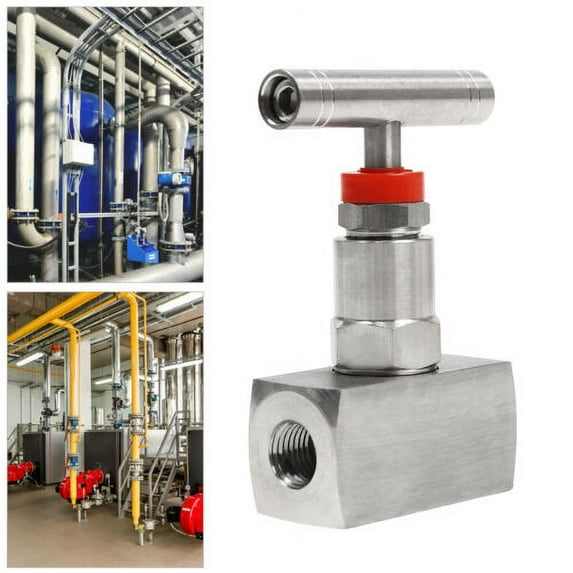

Stainless Steel Two Ports Straight Needle Valve 6000PSI 1/4" NPT Thread
Key item features
How do you want your item?
About this item
Product details
Description
Our 316 stainless steel straight needle valve features a more precise valve seat and needle design to give you more accurate flow control. The high-quality 316 stainless steel material and one-piece construction also make it more pressure resistant, thus making the transportation of various media safer. It will be your powerful helper in transporting media at work.
Details
Control Handle: Its ergonomically designed handle makes your operation more comfortable.
Rounded Corners: The rounded corners make you less likely to get scratched during use, thus providing you with a higher level of safety in use.
Application
This product can be used as a joint for hydraulic, water, oil and gas pipelines and is suitable for agricultural machinery, food packaging machinery, wind power generation, site construction, automobile, railroad, aviation, oil, shipbuilding and other industries.
Specification
Model: J13W-6000PSI
Material: 316 Stainless Steel
Color: Silver
Process: CNC Machining
Assembly Required: No
Style: Needle Valve
Mounting: Threaded Connection
Thread Size: 1/4" NPT
Applicable Hose: Metal Hose
Number of Ports: 2
Applicable Temperature: ≤150℃/302℉
Operating Temperature: -20~150℃ /-4~302℉
Applicable Media: Hydraulic, Water, Oil and Gas
Maximum Working Pressure: 6000PSI
Flow Diameter: Φ6
Gross Weight: 0.4kg/ 0.88 lbs
Package Size: 9*6*3 cm/3.54*2.36*0.1 in
Valve Body Size (L*H): 5.5*2.8cm/2.17*1.1in
Valve Body Interface Diameter:1.15cm/0.45in
Handle Size (L*φ): 6*1.2cm/2.36*0.47in
Handle Distance from Valve Body: 6.3cm/2.48in
Package Included
1 * 316 Stainless Steel Straight Needle Valve
Notes
As the temperature changes, the working pressure also changes. If a needle valve is used in a high-temperature environment, then its working pressure will be reduced.
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
