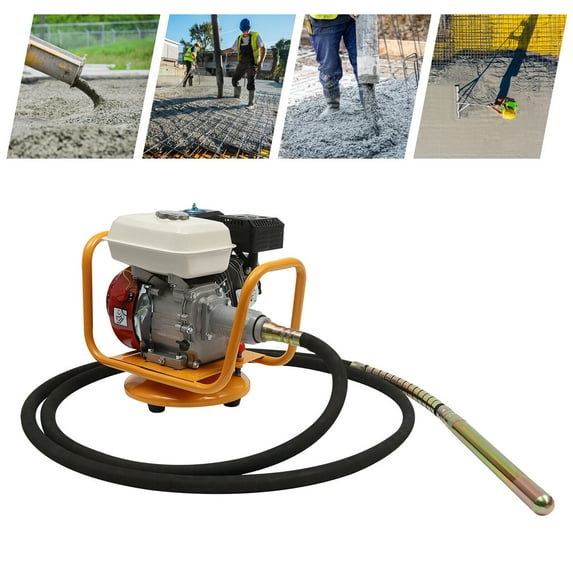

DENEST 4-Stroke 7.5HP Gas Powered Concrete Vibrator Mixer Cement Air Cooled System

(No ratings yet)

Key item features

High-quality Material: the Product Is Made of Aluminum Alloy and the Surface Is Painted, with High Hardness, High Abrasion Resistance, Strong Pressure Resistance, and Long Service Life.
Efficient Heat Dissipation: the Wide Heat Dissipation Holes Provide Efficient Heat Dissipation for the Internal Gasoline Engine, Making the Product Run More Efficiently and Smoothly.
Powerful Vibration Capability: Our 7.5 Hp Concrete Vibrator Has Powerful Vibration Force and Speed of up to 3600r/Min, Making the Concrete More Uniform Under the Mixing of the Vibrator. It Shortens the Setting Time and Saves Cement Usage, Thus Speeding up the Project.
Large Work Area Coverage: the 19.69ft Long Vibrator Is Easy to Use and Has a Long Reach, Thus Effectively Expanding Your Work Area.
Easy to Install: This Product Is Easy to Install. All You Have to Do Is Plug in the Connector, Start Vibrating, Insert the Vibrating Rod into the Concrete, and Then It's Ready to Expel the Air from the Concrete.
High Stability: the Round Chassis with Non-slip Silicone Feet Not Only Has More Stability but Also Can Effectively Play the Role of Shock Absorption, Thus Making Your Use Safer.
Easy to Use: This Product Uses Gasoline As Raw Material and Is Not Restricted by Electric Wire. It Allows You to Have a Higher Degree of Freedom of Operation. the Recoil Hand-pull Start Is Easy to Operate, Without Too Many Complicated Operations.
Energy Saving: the Energy Consumption less than or Equal to 395g/Kw.h Can save You More Energy, Thus Saving You More Money on Fuel Purchases.

Specs

Horsepower
7.5 HP
Has written warranty
No
Material
Aluminum Alloy
Manufacturer
DENEST

Current price is $216.75

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

4-Stroke 7.5HP Gas Powered Concrete Vibrator Mixer Cement Air Cooled System

Description

As We All Know, the Higher the Power of the Concrete Vibrator, the Better the Vibration Effect. Our Concrete Vibrator Has a High Power of 4.1kw. It Adopts the Principle of High-frequency Vibration, Which Can Quickly and Efficiently Vibrate Concrete to Make Its Surface Flat and Dense Inside, Thus Achieving a Good Curing Effect. This High-powered Construction Tool Will Make Your Work Easier and More Efficient.

Application

It Can Be Used by Those Who Insert Vibrating Rods When Placing Concrete Elements, Such As: Placing Concrete Columns, Walls, Main Beams, Secondary Beams, and Precast Elements. It Is Particularly Suitable for Pouring Small Lightweight Thin-walled Elements and for Vibrating Plastic, Semi-dry Hard, and Dry Hard Concrete. This Product Can Be Applied to Different Concrete Production Scenarios, Such As Highways, Tunnels, Bridges, Interior Decoration, Housing Construction, and Foundation Laying. It Is an Ideal Tool Indispensable for Various Concrete Site Construction in Remote Areas Without Electricity or During Power Outages.

Specification

Material: Aluminum Alloy

Color: Yellow

Surface Process: Baking Paint

Assembly Required: Yes

Power Source: Gasoline

Cooling System: Air-cooled

Form: Single bar, Four Stroke

Ignition Mode: Transistorized Electronic Ignition

Lubrication Mode: Splash Lubrication

Starting Method: Recoil Hand Pull Start

Displacement: 207ml/8.75oz

Horsepower: 7.5hp

Rated Power: 4.1kw

Speed: 3600r/Min

Maximum Torque: 12n.m/2500rpm

Fuel Consumption: ≤395g/Kw.h

Cylinder Diameter: 70*45mm/2.76*1.77in

Vibrating Pump Bore: 40mm/1.57in Inner Diameter

Vibrating Rod Length: 6m/19.69ft

Amplitude: 1.15mm/0.05in

Product Size: 52*39*45 Cm/ 20.47*15.35*17.71 in

Concrete Vibrator:

Weight: 22kg/ 48.5 Lbs

Package Size: 49*39*48 Cm/ 19.29*15.35*18.9in

Vibrating Rod:

Weight: 18 Kg/ 39.68 Lbs

Package Size: 71*65*4.5 Cm/ 27.95*25.59*1.77in

Package Included

1 * Concrete Vibrator

1 * Vibrating Rod

1 * English Manual

All Accessories for Installation

Notes

After Starting, If the Concrete Vibrator Does Not Produce Vibration, You Can Usually Tap the End of the Concrete Vibrator to the Floor. Please Be Sure to Use the Side of the Rod Head to Tap the Floor or the Housing Rod, or You Can Swing the Rod Head for a While and the Rod Head Will Start to Vibrate.
When Working, the Concrete Vibrating Rod Should Be Inserted into the Concrete Vertically or at an Angle, and After Vibrating for a While, the Concrete Should Be Pumped up and down to Vibrate.
After Working Continuously for Half an Hour, the Vibrating Rod Should Be Stopped for a Period of Time to Prevent the Machine from Overheating and Damaging the Machine Parts.
After Using It for a Period of Time, the Vibrating Rod Should Be Checked to See If the Threaded Connection of the Rod Head Is Loose to Prevent Mortar Water from Seeping into the Rod and Causing the Vibrating Rod Not to Vibrate.
Please Read the Operating Manual Completely Before Use. and Pay Particular Attention to the Safety Instructions Included.

High-quality Material: the Product Is Made of Aluminum Alloy and the Surface Is Painted, with High Hardness, High Abrasion Resistance, Strong Pressure Resistance, and Long Service Life.
Efficient Heat Dissipation: the Wide Heat Dissipation Holes Provide Efficient Heat Dissipation for the Internal Gasoline Engine, Making the Product Run More Efficiently and Smoothly.
Powerful Vibration Capability: Our 7.5 Hp Concrete Vibrator Has Powerful Vibration Force and Speed of up to 3600r/Min, Making the Concrete More Uniform Under the Mixing of the Vibrator. It Shortens the Setting Time and Saves Cement Usage, Thus Speeding up the Project.
Large Work Area Coverage: the 19.69ft Long Vibrator Is Easy to Use and Has a Long Reach, Thus Effectively Expanding Your Work Area.
Easy to Install: This Product Is Easy to Install. All You Have to Do Is Plug in the Connector, Start Vibrating, Insert the Vibrating Rod into the Concrete, and Then It's Ready to Expel the Air from the Concrete.
High Stability: the Round Chassis with Non-slip Silicone Feet Not Only Has More Stability but Also Can Effectively Play the Role of Shock Absorption, Thus Making Your Use Safer.
Easy to Use: This Product Uses Gasoline As Raw Material and Is Not Restricted by Electric Wire. It Allows You to Have a Higher Degree of Freedom of Operation. the Recoil Hand-pull Start Is Easy to Operate, Without Too Many Complicated Operations.
Energy Saving: the Energy Consumption less than or Equal to 395g/Kw.h Can save You More Energy, Thus Saving You More Money on Fuel Purchases.
