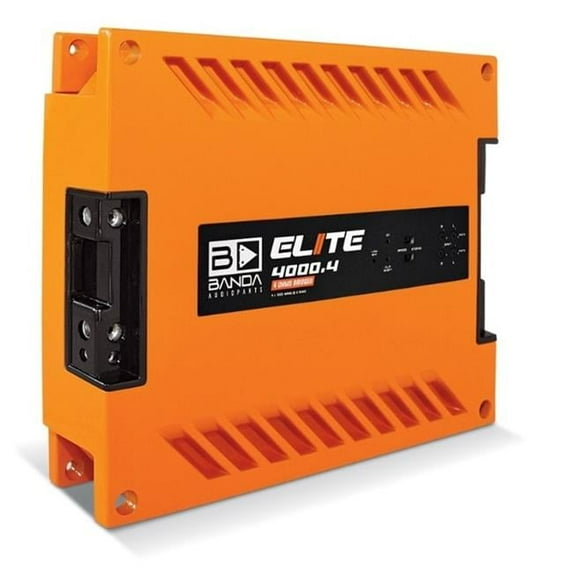

Elite Four Channel 1000W Max & 2 Ohm Car Audio Amplifier with Highpass Filter & Low Pass Filter - Orange

Elite Four Channel 1000W Max & 2 Ohm Car Audio Amplifier with Highpass Filter & Low Pass Filter

With powerful 4000 Watts RMS into 4 channels and impedance of 2 Ohms per channel, these amplifiers of the new line ELITE are very versatile, allowing various types of installation with a single amplifier. They are ideal for a FULL-RANGE of frequency response, or to be used into any project like with: Subwoofers, Woofers, Mid-range, Horns or Super Tweeters.

• Color: Orange
• Watts: 1000W
• Total Power 14.4 and 2 Ohms: 4 x 1200 WRMS
• Total Power 14.4 & 4 Ohms: 4 x 800 WRMS
• Total Power 14.4 Bridged & 4 Ohms: 2 x 2400 WRMS
• Total Power 12.6 & 2 Ohms: 4 x 1000 WRMS
• Total Power 12.6 & 4 Ohms: 4 x 650 WRMS
• Total Power 12.6 Bridged & 4 Ohms: 2 x 2000 WRMS
• Efficiency & 4 Ohms: 92%
• Efficiency & 2 Ohms: 82%
• Input Voltage: 9 - 15V
• Input Impedance: 100K Ohms
• THD+Noise: 0.10%
• Input Sensitivity: 150mV - 4V
• Frequency Response: 5 to 22KHz (-3dBs)
• High Pass Filter: 20 to 90Hz & 12dB/octave Linkwitz-Riley
• Low Pass Filter: 90 to 20kHz & 12dB/octave Linkwitz-Riley
• Recommended Fuse: 200A
• Current at Rest: 1A
• Average Current Draw (Sinusoidal): 420A
• Average Current Draw (Music): 210A
• Power Wire Gauge Minimum Recommended: 35mm / 2 AWG
• Speaker Wire Gauge Minimum Recommended: 2 x 4mm / 2 x 11 AWG
• Dimension: 2.4" H x 10.6" W x 12.3" D
• Weight: 10.65 lbs
