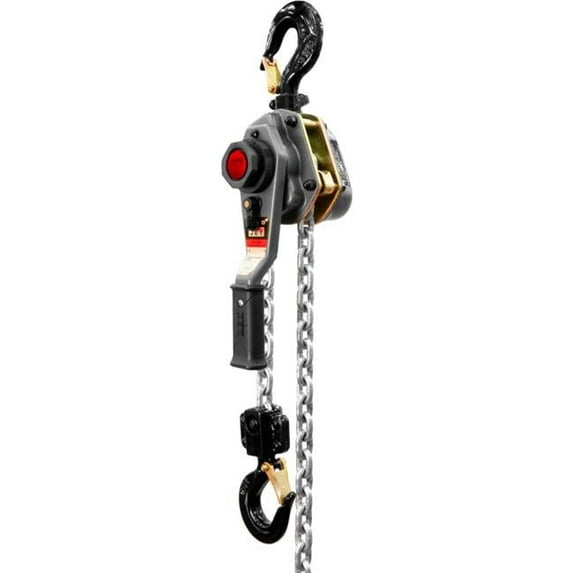

2.5 Ton JLH Series Lever Hoist with Overload Protection with 15 ft. Lift

The JLH Series is the most advanced lever hoists in the market. Features such as overload protection, the fused brake system and the offset handle design increases job site safety. Whether its inverted, vertical, horizontal or any other load angle, the JLH lever hoist is the solution for your heavy-duty industrial needs.

• Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Enhanced ergonomic grip allows for greater operator control and increased comfort
• Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• Impact resistant all steel construction for added durability and protection
• The lightweight design with shorter handle and smaller body are ideal for confined areas and low headroom applications
• Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
• Expertly crafted from superior materials
• Ensures everlasting service life
• Provides exceptional reliability

• Length Inches: 14-3/4
• Width Inches: 7
• Height Inches: 5-7/8
• Capacity Lbs: 5000
• Color Finish: Gray
• Approval/regulations: ANSI/ASME B30.21 & HST-3
• Assembly: Assembled
• Chain Falls: 1
• Handle Length Inches: 10-1/4
• Head Room Inches: 14-3/4
• Hook Opening Inches: 2.48
• Lift Feet: 15
• Series: JLH
• Suspension: Hook
• Type: Single Chain
• Hook Type: Standard
• Load Chain Dia/mm: 8.8
• Effort To Move Max Capacity Lbs.: 81.5
• Dimension 1: 5.9" H x 6.97" W x 14.76" L
• Weight: 36 lbs
