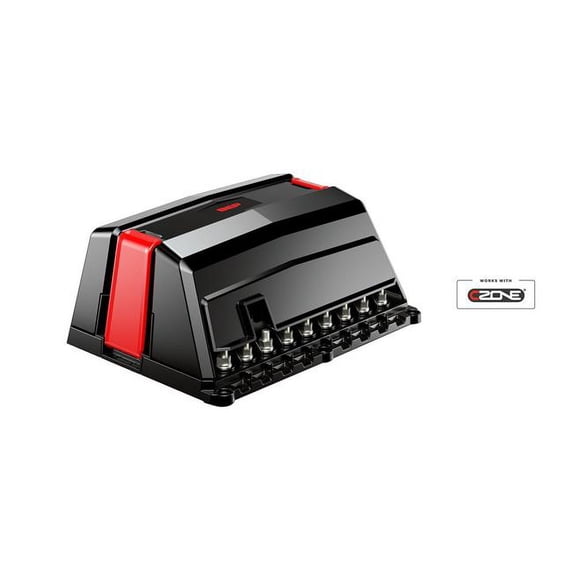

BEP Smart Battery Hub Twin Engine 80-716-0030-00

(No ratings yet)

Key item features

BEP Smart Battery Hub Twin EngineModel: 80-716-0030-00 Remotely operated magnetic latching switchesRemotely operated emergency parallel switchesConfigurable dual direction voltage sensitive switchesBattery Voltage MonitoringHouse battery State of Charge Monitoring2 x additional sensor inputsSafety manual override for all battery switches12 or 24 volt systemsParallel two units together for 4, 5 and even 6 engine installationsBEP’s innovative Smart Battery Hub (SBH) is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines. Smart Battery Hub simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching (VSS) and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure. VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature. SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.Specifications Power consumption max92mAPower consumption sleep<3.5mANMEA2000 connectivity1 x NMEA 2000 Micro-C port, 1 LENWarranty period5 yearsOperating temperature rang-15C to +55C (-5F to +131F)Storage temperature range-40C to +85C (-40F to +185F)Dimensions W x H x D14.310 x 10.841 x 6.280"NMEA2000 PGN OutputFluid Level, Pressure, Temperature, Battery Volts, State of ChargeMonitoringBattery voltage, House current draw, House state of chargeIngress protectionIPX7Nominal Voltage12 or 24V, power harvested from all batteriesContinuous rating300AIntermittent rating700ACranking rating1450AAdditional Inputs3 x Master switch inputs, 2 x Analogue Inputs, 1 x Battery temperature sensor
BEP Smart Battery Hub Twin Engine 80-716-0030-00
BEP

Specs

Boat accessory type
Battery Management System
Brand
BEP
Material
New
Color
MultiColor
Has written warranty
No
Model
BEP80716003000

Current price is $1,702.17

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Mon, Jun 22

Sold and shipped by Boating Store

4.657430730478589 stars out of 5, based on 1191 seller reviews(4.7)

Free 30-day returns

About this item

Product details

BEP's innovative Smart Battery Hub (SBH) is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines. Smart Battery Hub simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching (VSS) and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure. VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature. SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.

Features

Smart Battery Hub Twin Engine
Remotely operated magnetic latching switches
Remotely operated emergency parallel switches
Configurable dual direction voltage sensitive switches
Battery Voltage Monitoring
House battery State of Charge Monitoring
2 x additional sensor inputs
Safety manual override for all battery switches
12 or 24 volt systems
Parallel two units together for 4, 5 and even 6 engine installations

Specifications

Power consumption max: 92mA
Power consumption sleep: <3.5mA
NMEA2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
period: 5 years
Operating temperature range: -15C to +55C (-5F to +131F)
Storage temperature range: -40C to +85C (-40F to +185F)
Dimension (W x H x D): 14.310 x 10.841 x 6.280"
NMEA2000 PGN Output: Fluid Level, Pressure, Temperature, Battery Volts, State of Charge
Monitoring: Battery voltage, House current draw, House state of charge
Ingress Protection: IPX7
Nominal Voltage: 12 or 24V, power harvested from all batteries
Continuous rating: 300A
Intermittent rating: 700A
Cranking rating: 1450A
Additional Inputs: 3 x Master switch inputs, 2 x Analogue Inputs, 1 x Battery temperature sensor
Weight: 19.6 lbs
