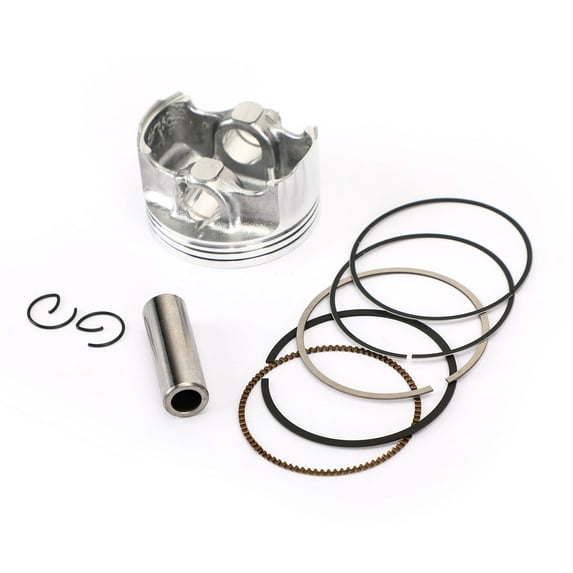

Piston Pin Ring Set 58.00mm Bore Size for Yamaha YZF R15 R-15 FZ 150 2011-2018

Piston Pin Ring Set Bore Size Ø58.00mm Fit for Yamaha YZF R15 R-15 FZ 150 2011-2018

Features:
Manufactured using the latest computerized technologies derived from GP and F1.
Forged pistons are more temperature resistant and longer lasting than cast pistons.
These pistons additionally have a piston skirt coating.
The piston sets are supplied complete with rings, bolts and clips.
Airtight function,prevent gas leakage from the top of the piston.
This piston ring also achieve the heat dissipation effect.
Prevent excessive oil from entering the combustion chamber and to fully lubricate the cylinder wall.
Maintain the direction of movement of the piston,so please select the best piston ring for the engine.
This kit includes a piston, rings, wrist pin, and circlips.
Professional install will be highly recommanded.No installation instruction included.

Specifics:
Condition: Aftermarket 100% Brand New
Material: Aluminum
Bore Type: +1.00
Bore Size: 58.00mm
Wristpin diameter: 14mm
Wristpin height: 41mm
Piston height: Approx 33mm
Attention: Modified piston,check out the bore size and height fits your motocycle or not before you purchase.

Part Number:
Piston: 3C1-E1631-11
Piston Ringset: 3C1-11603-00,1PA-E1603-00

Fitment:
Fit for Yamaha FZ150
Fit for Yamaha YZF155K YZF R15 SP 2014
Fit for Yamaha YZF155K YZF R15 2011-2014
Fit for Yamaha YZF155K YZF R15 2015-2018
(will not fit with R15 VVA Version 155cc 2018-2019)

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Piston
1x Piston Ring Set
1x Wristpin
2x Circlips

Note:
Please check out the P/N & height fits your motocycle or not before you purchase.
