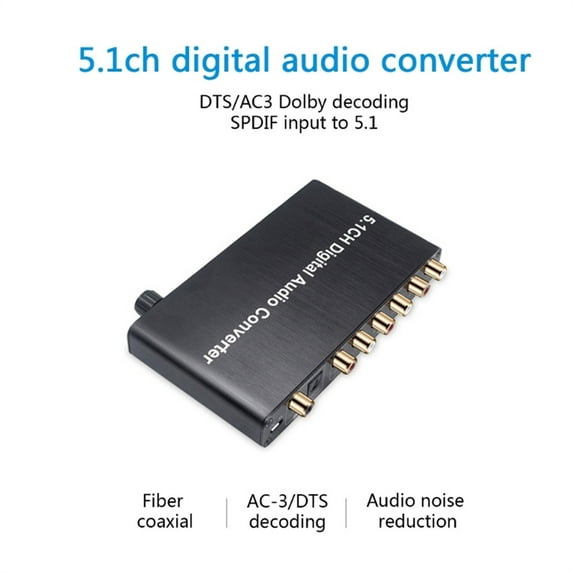

5.1CH Digital Audio Converter SPDIF Input To 5.1 Channel Audio Digital Sound Decoder Converter for DOLBY Decoding

Description:

Name: 5.1CH Digital Audio Converter

Input: 1 glass fiber input, 1 coaxial input port;

Output: SW, CEN, SR, SL, FR, FL, 3.5mm headphone port;

DSD sampling frequency: 2.8224 MHZ (DSD64);

PCM word length: 32 bits;

PCM sampling frequency: 192KHz;

Audio interface: 3.5mm;

Support audio formats: MP3, AC3, WAV, AAC, ALAC, FLAC, APE, OGG, M4A;

SNR: 120db;

Stereo isolation: 80db (1KHZ);

Channel balance: 0db;

Bit rate: 16 to 24 bits;

Response frequency: 20Hz to 20KHz/-0.7db;

Analog output level: 2.2V;

Analog input level: 1V (3db);

Power adapter: Input: 100V to 240V (50 to 60Hz);

Output: 5V/1A;

Maximum power current: 400mA;

Packing list:

1 x digital audio converter

1 x USB power cord

1 x Instruction manual

1 x Packaging box

Note:

Due to manual measurement, please allow 1-3cm differences, thanks (all measurements are in cm, please note that 1cm=0.39 inches).

There may be color difference due to different computers or smartphones, please forgive me!
