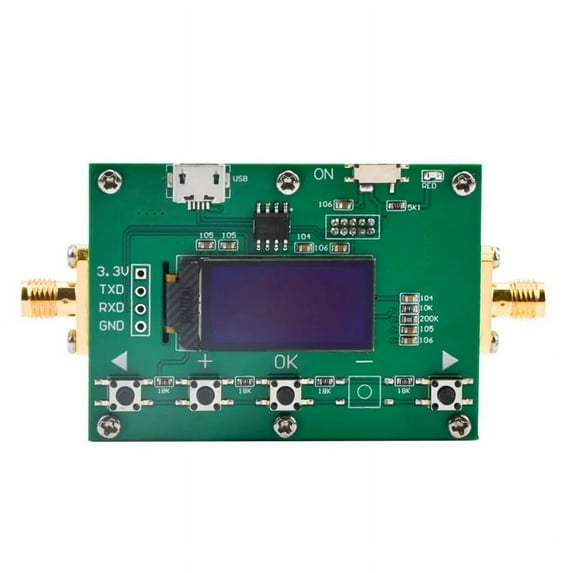

DC5V Digital Attenuator Module DC-6GHz Parallel 0-31.75DB Programmable Attenuator CNC Housing Module Amplifier

Description
The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit, and can also be used as an internal attenuator for instrument equipment to adjust the power level in the testing system. It has the characteristics of small size, high accuracy, stability and reliability, and uses OLED to display the attenuation amount, which can be controlled by the upper computer
Parameters:
Working frequency: LF-6GHz
Attenuation adjustment range: 0-31.75dB
Attenuation step: 0.25 (dB)
Voltage: DC5V
Insertion loss: ≤ 1.5dB (higher insertion loss at the high-frequency end)
Standing wave ratio: ≤ 1.4
Attenuation accuracy: ± 0.25dB Max
Rated power: ≤ 1W
Connector type: SMA (female , external screw and internal hole)
Temperature range: -10 ℃~+50 ℃ (operating)
-40 ℃~+70 ℃ (not running)
Input output impedance: 50 ohms
Material: PC+Metal
colour: green

Package Contents:
1 x DC5V Digital Attenuator Module

Only the above package content, other are not included.
