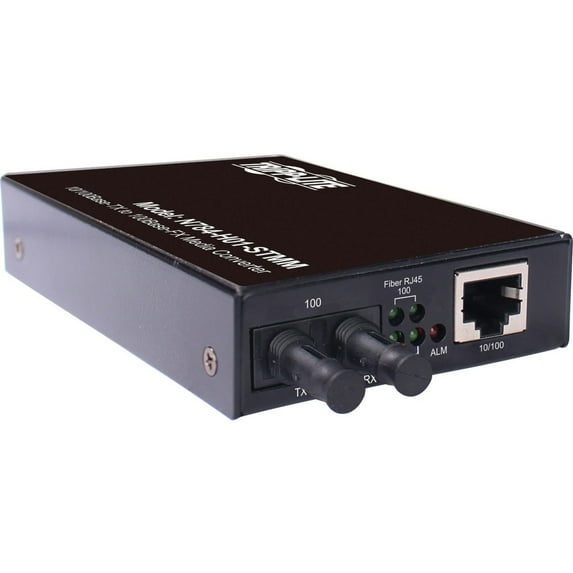

Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode...

Hero image 0 of Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode..., 0 of 7

Tripp Lite

Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode...

Name: Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode...
Brand: Tripp Lite
SKU: 515382823
Price: 141.78 USD
Availability: OutOfStock

(No ratings yet)

Key item features

Tripp Lite Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10? to 60?C, 2 km (1.2 mi.) - Fiber media converter - 100Mb LAN - over CAT 5/5e/6 - 10Base-T, 100Base-TX - RJ-45 / ST multi-mode - up to 1.2 miles - 1310 nm - TAA Compliant

Specs

Connection
Network (RJ-45), Network (RJ-45) Ports, ST Ports
Brand
Tripp Lite
Model name
N784-H01-STMM
Piece count
1

Current price is $141.78

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

General Information

Features | Extends a Network Connection up to 2 km over ST Multimode Fiber Optic Cable

This network media converter converts a copper Ethernet signal to a multimode fiber optic signal and extends it to a second network device up to two kilometers (1.2 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-STMM with multimode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Link Fault Signaling and Loop Back Functions

Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

LEDs Indicate Installation Performance and Diagnostic Functions

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.

Protective Metal Housing Built to Withstand a Variety of Hazards

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.

Works in Tandem with Tripp Lite's N785-CH12 Chassis

House and power up to 12 Tripp Lite media converters, including the N784-H01-STMM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.

TAA-Compliant for GSA Schedule Purchases

The N784-H01-STMM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Interfaces/Ports

Total Number of Ports:	2
Network (RJ-45):	Yes
Number of Network (RJ-45) Ports:	1
Number of ST Ports:	1
ST Port Type:	Duplex

Media & Performance

Media Type Supported:	Twisted Pair
Media Type Supported:	Optical Fiber
Fiber Mode Supported:	Multi-mode
Fiber Optic Wavelength:	1310 nm
Maximum Distance Supported:	1.24 Mile

Network & Communication

Ethernet Technology:	Fast Ethernet
Network Technology:	10/100Base-TX
Network Technology:	100Base-FX

Power Description

Power Source:	AC Adapter
Power Consumption:	1.80 W
Plug/Connector Type:	NEMA 1-15P

Physical Characteristics

Form Factor:	Wall Mountable
Form Factor:	DIN Rail Mountable
Form Factor:	Desktop
Height:	0.9"
Width:	2.9"
Depth:	4.3"
Weight (Approximate):	8.43 oz

Miscellaneous

Package Contents:	N784-H01-STMM Transceiver/Media Converter L-shaped Bracket Rubber Foot ST Connector Cap External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A) DIN Rail Kit Wall-mounting Hardware Quick Start Guide
Environmentally Friendly:	Yes
Country of Origin:	Taiwan
TAA Compliant:	Yes

Warranty

Limited Warranty:

2 Year

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Network adapter type

Fiber Optic Network Adapter

Connection

Network (RJ-45), Network (RJ-45) Ports, ST Ports

Brand

Tripp Lite

Accessories

L-shaped Bracket, Rubber Foot, ST Connector Cap, External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A), DIN Rail Kit, Wall-mounting Hardware, Quick Start Guide

Warranty

Warranty information

2 Year

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.

Warnings

Ingestion Hazard

This product contains a battery. Death or serious injury can occur if ingested. A swallowed battery can cause Internal Chemical Burn in as little as 2 hours. Keep new and used batteries OUT OF REACH OF CHILDREN. Seek Immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
