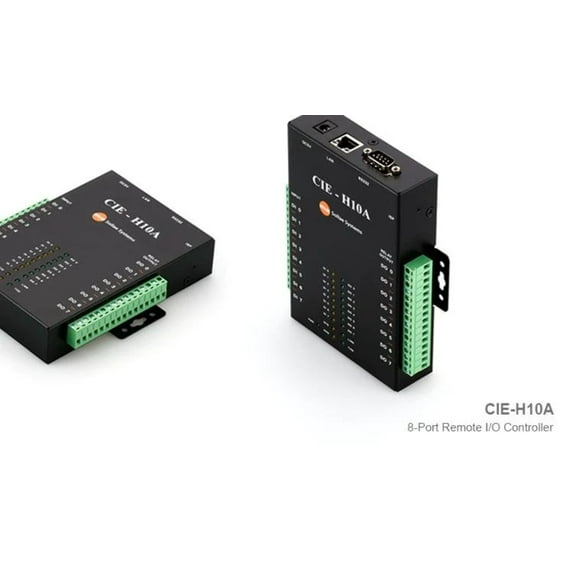

CIE-H10A ezTCP 8-Port, RS-232 Ethernet Remote I/O Controller

The CIE-H10A from Sollae Systems is a remote I/O controller that supports 8 input ports interfaced with a photocoupler and 8 output ports (Relay Switch). The CIE-H10A provides the functions to monitor and control the digital input ports and digital output ports through the Internet. Also, the existing contacts can be controlled through the network, enabling efficient management of I/O equipment from remote locations.

The serial ↔ TCP/IP conversion function is provided, so serial devices can be easily managed without a serial LAN converter.

Modbus/TCP protocol is used when controlling the contacts of the CIE-H10A, and since the Web method is also supported, you can control the output ports through the Web page from anywhere. The Web page can be changed to suit the user’s purposes. Additionally, a Macro function that automatically controls the output ports is provided by a simple logic formula according to the input port.

The CIE-H10A Remote I/O Controller can be used in any environment where I/O devices need to be controlled and monitored, especially for applications such as Remote PC Power Control, Internet Switch, etc.

Features:

• 8 digital input, 8 digital output ports
• Durable steel case
• Dry contact adapter (optional)
• Monitor & control via Modbus/TCP or Web
• Controlled by simple logic formula operating autonomously
• Web-based control over a custom web page
• Can be used as an Internet switch
• Free Modbus/TCP program (ModMap)
• Extended Operating Temperature: -40C to +70C

Package includes:

1X CIE-H10A ezTCP 8-Port Remote I/O Controller

Delivery is stock to 2 weeks ARO

Optional Accessories:

2X MOUNTER DIN Rail Mount and BRACKET for attaching MOUNTER

5V 5W AC-DC Wall Mount Power Adapter

CIE-H10A Documentation, Specifications and Resources

CIE-H10A / 8-Port Remote I/O Controller product web page:  https://www.eztcp.com/en/products/cie-h10a.php

CIE-H10A Videos

CIE-H10A Introductory Video:
