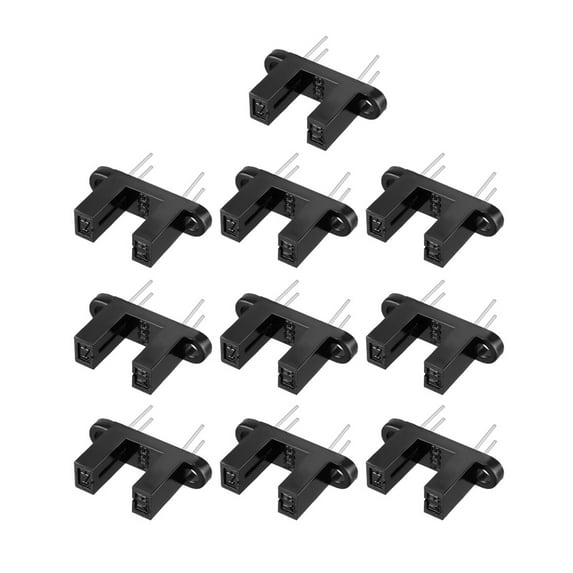

10Pcs 5/16" Slot PCB Photo Interrupter Slotted Optical Sensor Switch HY860H

• Product Name:  Optical Sensor Switch
• Model: HY860H
• Output Type: Photo Transistor
• Peak Emission Wavelength:940nm
• IR Diode Forward Current: 50mA
• IR Diode Reverse Voltage: 5V
• Transistor Power Dissipation: 75mW
• Transistor Collector Current: 20mA
• Photo Transistor Collector-emitter Voltage: 30V
• Photo Transistor Emitter-collector Voltage: 5V
• Diode Power Dissipation: 100mW
• Operating Temperature Range:    -55~100 Celsius Degree
• Number of Pins: 4
• Slot Width:  7.9mm/5/16"
• Slot Depth:  9.66mm/0.38"
• Pin Length:  9.11mm/0.36"
• Total Size:  24.7 x 12.4 x 6.1mm/0.97" x 0.49" x 0.24"(L*W*H)
• Detection Distance：8mm
• Material: Plastic, Metal
• Color: Black
• Package Content: 10pcs x Optical Sensor Switch

Description:

• Consisted of an infrared emitter and a photo transistor, is located face-to-face on the optical axes in a leaded package.
• During operation, output photo transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.
• Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
