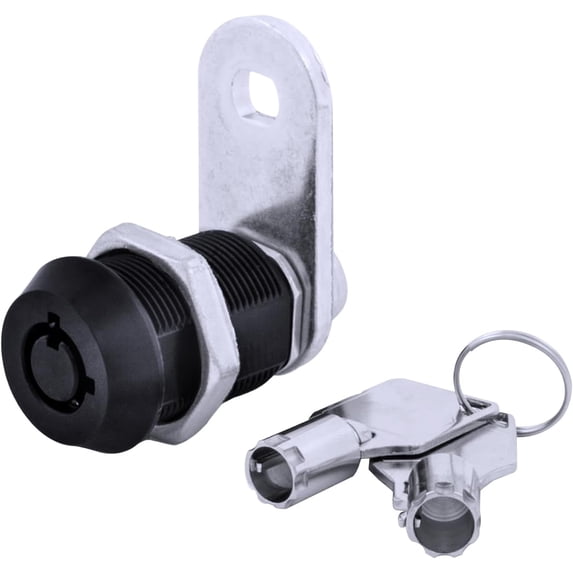

FJM Security 2400AM-BLK-KD Tubular Cam Lock with 7/8" Cylinder and Black Finish, Keyed Different

7 Pin Tubular Cam Lock- 7/8” Cylinder Length
The FJM Security tubular cam lock (sometimes called the ace cam lock) has a 7/8” cylinder length and can accommodate material thickness up to 5/8” thick. The 1-1/4” cam can be installed at the 12, 3, 6 and 9 o’clock positions with a 90 degree turn. The stop cam is reversible so that the lock key can either be turned to the right or left to open. The cylinder diameter is standard at ¾”. The small cam lock is constructed of zinc alloy and has a chrome finish. The hex nut, cam, screw and keys are all steel with chrome plating.

Secure Keyway
The reversible key cam lock is keyed different (all keys are different to all the locks you buy, and will not work on any other lock you purchase) with 7 pin security. Non-key retaining- The key can be removed in the locked and unlocked positions.

Included in the box

• Tubular cam lock
• Two keys
• Cylinder nut
• 1-1/4” cam and cam nut

Applications

• Furniture
• Electronics Enclosures
• HVAC
• Industrial Enclosures
• Industrial Equipment
• Medical Cabinets and Equipment
• Recreation Vehicles
• Transportation
• Vending POS
• Replaces any current cam lock application

Optional Cam Accessories

• 3/4" Dual Hole Straight Cam
• 2" Dual Hole Straight Cam
• 1-1/2" Dual Hole Cam with 1/4" Offset
• 1-1/2" Dual Hole Cam with 1/2" Offset
