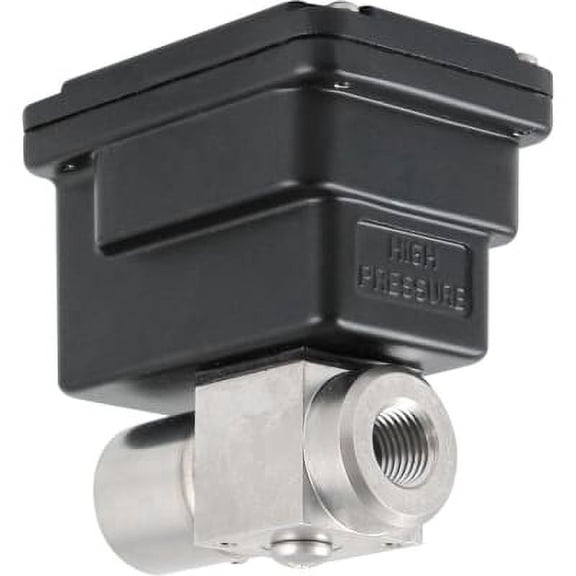

Setra Systems 230 Series Wet-to-Wet Differential Pressure Transducer 0-100PSID 4-20mA

The Setra Systems 2301100PD2F11B 0/100# 1/4 #Transducer;4-20mA, the highest accuracy solution for monitoring differential pressure in wet-to-wet applications. This stainless steel capacitive sensor provides a highly accurate, linear analog output proportional to pressure over a wide temperature range. It is offered with an optional 3 or 5 valve machined brass manifold for ease of installation and maintenance. Here are the features and specifications:

• Only true wet-to-wet differential pressure transducer on the market
• 0.25% FS Accuracy
• Available to 1 PSID with 350 PSI Line Pressure
• No Liquid Fill Diaphragm
• NEMA 4 Rated Housing
• Low Line Pressure Effect
• Fast Response Time
• Gas & Liquid Compatible
• CE & RoHS Compliant
• Manufacturer Part Number: 2301100PD2F11B
• Item Number: 2301100PD2F11B
• Manufacturer: Setra
• Product Series: 230
• Family Series: Setra HVAC Sensors, 230 Series
• Pressure Range: 0~100 psi
• Output: 4~20 mA
• Process Connection: 1/8-18 NPT Internal
• Sensor Style: Differential
• Max Pressure: 100 psi
• Supply Voltage: 9~30 VDC
• Electrical Connection: Terminal Block
• NEMA Rating: NEMA 4
• IP Rating: IP65
• Temperature Range: 0 to 175 Degrees F
• Approvals: CE
