Starter Compatible with Kohler CH395-3031 CH395-3021 CH395-0021 Command PRO Horizontal Engine 9.5HP 277cc 12V 14T CCW 17-098-04S Pressure Washer Tiller

Name: Starter Compatible with Kohler CH395-3031 CH395-3021 CH395-0021 Command PRO Horizontal Engine 9.5HP 277cc 12V 14T CCW 17-098-04S Pressure Washer Tiller
Brand: Rareelectrical
SKU: 501022882
Price: 104.94 USD
Availability: InStock

(No ratings yet)

Check if this fits your vehicle

Protect your purchase

Get peace of mind for pennies a day!

Add Walmart Protection Plan

3-Year Plan - $18.00

2-Year Plan - $13.00

I don't need protection at this time

Key item features

Rareelectrical Compatible With Kohler
Kohler Ch395 Command Pro Engine Models: Ch395-0Xxx Series: • Ch395-0021, Ch395-0024, Ch395-0025, Ch395-0026 • Ch395-0031, Ch395-0032, Ch395-0041, Ch395-0065 • Ch395-0112, Ch395-0113, Ch395-0114, Ch395-0115, Ch395-0116 Ch395-1Xxx Series: • Ch395-1031, Ch395-1065 Ch395-3Xxx Series: • Ch395-3011, Ch395-3018, Ch395-3021, Ch395-3024 • Ch395-3026, Ch395-3028, Ch395-3029, Ch395-3031 • Ch395-3032, Ch395-3038, Ch395-3039 • Ch395-3102, Ch395-3149, Ch395-3152, Ch395-3155, Ch395-3159 Log Splitter Applications: • Arco Pp35tk0-1 35-Ton Horizontal/Vertical • Dirty Hand Tools 107040 30-Ton • Speeco 22-Ton, 28-Ton Models • Huskee/County Line Log Splitters • Champion Log Splitters Pressure Washer Applications: • Simpson Alk4033 Aluminum Series 4000 Psi 3.3 Gpm • Simpson Psk4033 Powershot 4000 Psi • Mi-T-M Ca-3003-1Mak 3000 Psi 3.0 Gpm • Mi-T-M Jp-3003-3Mkb 3000 Psi 3.0 Gpm • Mi-T-M Hsp-3003-3Mgk Hot Water 3000 Psi 2.9 Gpm Air Compressor Applications: • Ingersoll Rand Ss5j9.5Gk-Wb 8-Gallon Wheelbarrow • Industrial Air Cta6590412 4-Gallon Portable Tiller/Cultivator Applications: • Troy-Bilt Horse Rear Tine Tiller • Bcs 720, 732 Walk-Behind Tractors Generator Applications: • Kohler Pro9.0 Portable Generator • Kohler Pro9.0E Electric Start Portable Concrete Equipment: • Multiquip/Whiteman Power Trowels • Bartell Morrison Power Trowels • Walk-Behind Concrete Screeds Water Pump Applications: • Multiquip Trash Pumps • Tsurumi Semi-Trash Pumps
Kohler Oem Part Numbers: • 17 098 04 • 17-098-04, 1709804 • 17 098 04-S • 17-098-04S, 1709804S • 17-098-04S-A • 17 098 12-S • 17-098-12S, 1709812S • 17-098-12S-A Specifications: • Voltage: 12V • Rotation: Counter Clockwise (Ccw) • Teeth: 14 • Length: 7.126" / 181Mm • Registry Od: 1.839" / 46.7Mm • Mount Holes: M8x1.25 Threaded (X2) • Mounting Ear Distance: 2.559" / 65Mm • Weight: 3.76 Lbs Engine Info: • Engine: Kohler Command Pro Ch395 • Displacement: 277Cc / 16.9 Cu In • Horsepower: 9.5 Hp • Torque: 13.9 Ft-Lb • Type: 4-Stroke Ohv Horizontal Shaft Fits Equipment: • Arco Pp35tk0-1, Dirty Hand Tools 107040 • Simpson Alk4033, Psk4033 • Mi-T-M Ca-3003-1Mak, Jp-3003-3Mkb • Ingersoll Rand Ss5j9.5Gk-Wb • Troy-Bilt Horse Tiller, Bcs 720
Source: Aftermarket
One Year Manufacturer's Warranty.

Specs

Manufacturer part number
SCH01042
Vehicle make
Kohler
Brand
Rareelectrical
Vehicle fitment type
Specific
Volts
12 V
Weight
4 lb

Current price is $104.94

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $18.00

2-Year Plan - $13.00

How do you want your item?

Ships to

Arrives by Wed, May 20

Sold and shipped by Rareelectrical

4.429872495446266 stars out of 5, based on 549 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

About this item

Product details

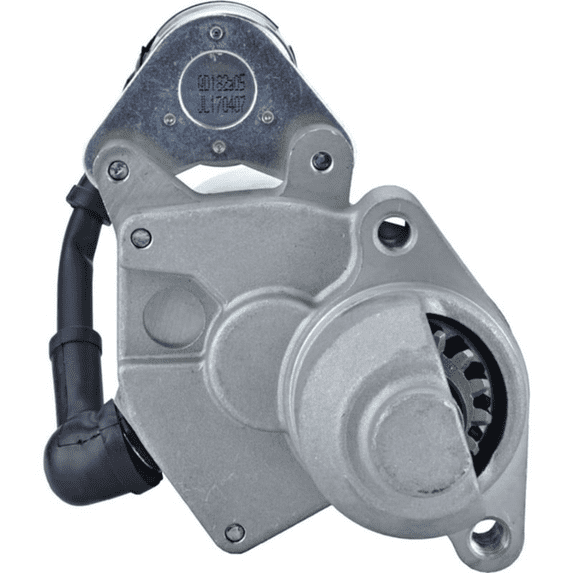

12V 14T Starter Motor for Kohler Command PRO CH395 Series Horizontal Engine - 9.5 HP 277cc Single Cylinder 4-Stroke Air-Cooled Industrial Engine

OEM PART NUMBERS:
• Kohler: 17 098 04, 17-098-04, 1709804
• Kohler: 17 098 04-S, 17-098-04S, 1709804S
• Kohler: 17 098 12-S, 17-098-12S, 1709812S
• Kohler: 17-098-04S-A, 17-098-12S-A

SPECIFICATIONS:
• Voltage: 12V
• Rotation: Counter Clockwise (CCW)
• Teeth: 14
• Length: 7.126" / 181mm
• Registry OD: 1.839" / 46.7mm
• Mount Holes: M8x1.25 Threaded (x2)
• Mounting Ear Distance: 2.559" / 65mm
• Weight: 3.76 lbs / 1.71 kg

ENGINE INFO:
• Engine: Kohler Command PRO CH395
• Displacement: 277cc / 16.9 cu in
• Horsepower: 9.5 HP @ 4,000 RPM
• Torque: 13.9 ft-lb @ 2,800 RPM
• Type: 4-Stroke OHV Horizontal Shaft

EQUIPMENT APPLICATIONS:
• Log Splitters: Arco PP35TK0-1 35-Ton, Dirty Hand Tools 107040 30-Ton, Speeco, Huskee, County Line
• Pressure Washers: Simpson ALK4033 4000PSI, Mi-T-M CA-3003-1MAK, JP-3003-3MKB
• Air Compressors: Ingersoll Rand SS5J9.5GK-WB 8-Gallon
• Tillers: Troy-Bilt Horse, BCS 720
• Generators: Kohler PRO9.0, PRO9.0E Portable

⚠️ Verify OEM part number 17-098-04S, 17-098-12S from your original unit before ordering.

Rareelectrical Compatible With Kohler
Kohler Ch395 Command Pro Engine Models: Ch395-0Xxx Series: • Ch395-0021, Ch395-0024, Ch395-0025, Ch395-0026 • Ch395-0031, Ch395-0032, Ch395-0041, Ch395-0065 • Ch395-0112, Ch395-0113, Ch395-0114, Ch395-0115, Ch395-0116 Ch395-1Xxx Series: • Ch395-1031, Ch395-1065 Ch395-3Xxx Series: • Ch395-3011, Ch395-3018, Ch395-3021, Ch395-3024 • Ch395-3026, Ch395-3028, Ch395-3029, Ch395-3031 • Ch395-3032, Ch395-3038, Ch395-3039 • Ch395-3102, Ch395-3149, Ch395-3152, Ch395-3155, Ch395-3159 Log Splitter Applications: • Arco Pp35tk0-1 35-Ton Horizontal/Vertical • Dirty Hand Tools 107040 30-Ton • Speeco 22-Ton, 28-Ton Models • Huskee/County Line Log Splitters • Champion Log Splitters Pressure Washer Applications: • Simpson Alk4033 Aluminum Series 4000 Psi 3.3 Gpm • Simpson Psk4033 Powershot 4000 Psi • Mi-T-M Ca-3003-1Mak 3000 Psi 3.0 Gpm • Mi-T-M Jp-3003-3Mkb 3000 Psi 3.0 Gpm • Mi-T-M Hsp-3003-3Mgk Hot Water 3000 Psi 2.9 Gpm Air Compressor Applications: • Ingersoll Rand Ss5j9.5Gk-Wb 8-Gallon Wheelbarrow • Industrial Air Cta6590412 4-Gallon Portable Tiller/Cultivator Applications: • Troy-Bilt Horse Rear Tine Tiller • Bcs 720, 732 Walk-Behind Tractors Generator Applications: • Kohler Pro9.0 Portable Generator • Kohler Pro9.0E Electric Start Portable Concrete Equipment: • Multiquip/Whiteman Power Trowels • Bartell Morrison Power Trowels • Walk-Behind Concrete Screeds Water Pump Applications: • Multiquip Trash Pumps • Tsurumi Semi-Trash Pumps
Kohler Oem Part Numbers: • 17 098 04 • 17-098-04, 1709804 • 17 098 04-S • 17-098-04S, 1709804S • 17-098-04S-A • 17 098 12-S • 17-098-12S, 1709812S • 17-098-12S-A Specifications: • Voltage: 12V • Rotation: Counter Clockwise (Ccw) • Teeth: 14 • Length: 7.126" / 181Mm • Registry Od: 1.839" / 46.7Mm • Mount Holes: M8x1.25 Threaded (X2) • Mounting Ear Distance: 2.559" / 65Mm • Weight: 3.76 Lbs Engine Info: • Engine: Kohler Command Pro Ch395 • Displacement: 277Cc / 16.9 Cu In • Horsepower: 9.5 Hp • Torque: 13.9 Ft-Lb • Type: 4-Stroke Ohv Horizontal Shaft Fits Equipment: • Arco Pp35tk0-1, Dirty Hand Tools 107040 • Simpson Alk4033, Psk4033 • Mi-T-M Ca-3003-1Mak, Jp-3003-3Mkb • Ingersoll Rand Ss5j9.5Gk-Wb • Troy-Bilt Horse Tiller, Bcs 720
Source: Aftermarket
One Year Manufacturer's Warranty.
