Hero image 0 of Bodee CAT40 ER20 4" 20000 RPM @ G2.5 Balanced CNC Coolant Thru. Collet Chuck 0.00012" TIR, 0 of 8

Visit the Kaka Industrial Store

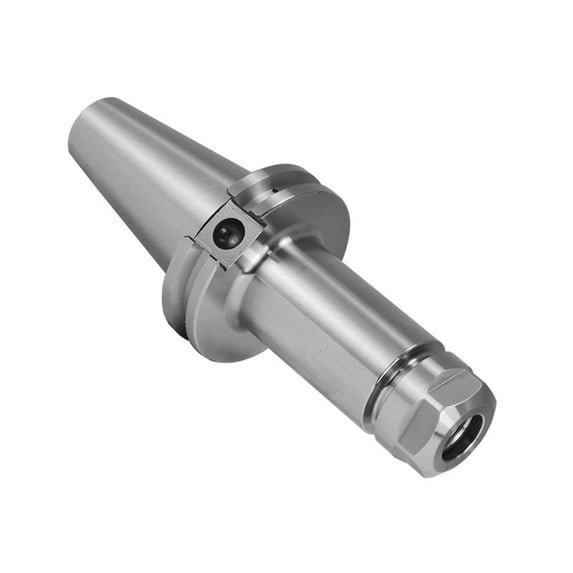

Bodee CAT40 ER20 4" 20000 RPM @ G2.5 Balanced CNC Coolant Thru. Collet Chuck 0.00012" TIR

(No ratings yet)

Bodee CAT40 ER20 4" 20000 RPM @ G2.5 Balanced CNC Coolant Thru. Collet Chuck 0.00012" TIR Bodee CAT40 ER20 4 20000 RPM G2 5 Balanced CNC Coolant Thru Collet Chuck 0 00012 TIR Bodee CAT40 ER16 4 20000 RPM G2 5 Balanced CNC Coolant Thru Collet Chuck 0 00012 TIR Bodee CAT40 ER40 2 76 20000 RPM G2 5Balanced CNC Coolant Thru Collet Chuck 0 00012 TIR

Size:CAT40-ER20-4.00

Key item features

1. Runout: .00012" TIR

2. Rear thread for pull stud is 5/8"-11

3. All critical tool holder surfaces precision ground and surface smoothing

4. Made from alloy structural steel hardened to HRC48 - 52

5. Precision balanced to G2.5 @ 20000 rpm and taper ground to high precision AT3 accuracy

6. Internal stop thread is 1/2"-13, excluding stop screws

7. Collet nut is included

8. Coolant thru capability

9.Collet Chuck accepts all ER20 collets.

10. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder

Specs

Size
CAT40-ER20-4.00
Material
Metal
Brand
Kaka Industrial
Pieces
1
Has written warranty
No
Model
ER20-4"

Current price is $64.01

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Sat, May 9

Sold and shipped by KAKA INDUSTRIAL LLC

3.6666666666666665 stars out of 5, based on 3 seller reviews(3.7)

Report an issue with this seller

Free 30-day returns - in store or online

About this item

Product details

1. Runout: .00012" TIR

2. Rear thread for pull stud is 5/8"-11

3. All critical tool holder surfaces precision ground and surface smoothing

4. Made from alloy structural steel hardened to HRC48 - 52

5. Precision balanced to G2.5 @ 20000 rpm and taper ground to high precision AT3 accuracy

6. Internal stop thread is 1/2"-13, excluding stop screws

7. Collet nut is included

8. Coolant thru capability

9.Collet Chuck accepts all ER20 collets.

10. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder

Size: CAT40

SKU: BA0101009

Style Name: ER20 Type

Through Coolant: YES

TIR: 0.00012"

Balanced to: G2.5 20000 RPM

Collet Nut Diameter(d): 1.34"

Net Weight: 2.645 lbs

Collet Range: 0.043" - 0.5"

Gross Weight: 2.866 lbs

Projection (L1): 4"

Meas: 7.9×2.95×2.95 in.

Overall Length(L): 6.687"

1. Runout: .00012" TIR

2. Rear thread for pull stud is 5/8"-11

3. All critical tool holder surfaces precision ground and surface smoothing

4. Made from alloy structural steel hardened to HRC48 - 52

5. Precision balanced to G2.5 @ 20000 rpm and taper ground to high precision AT3 accuracy

6. Internal stop thread is 1/2"-13, excluding stop screws

7. Collet nut is included

8. Coolant thru capability

9.Collet Chuck accepts all ER20 collets.

10. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder
