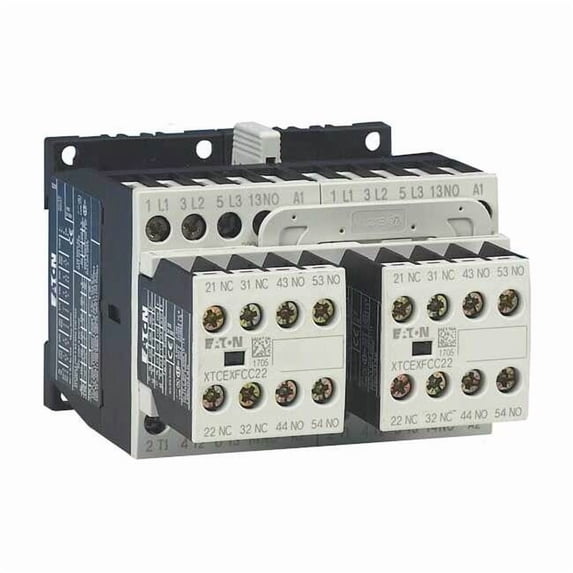

IEC Magnetic Contactor, 1NC/2NO, 120V AC, 3 P, Reversing, Screw

The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching within specified electrical parameters. It is a 3-pole, reversing type with a coil voltage of 120 V AC, capable of controlling loads in both directions within specified ratings. The device carries auxiliary contacts and a mounting option suitable for DIN rail or panel installation, intended for installation in appropriate enclosures as per applicable standards. Key features - Poles: 3 - Action: Reversing; Reversing capability: Yes - Coil Voltage: 120 V AC - Amperage (Full Load): Inductive 9 A; Resistive 22 A - Auxiliary contacts: 4 total; Configuration: 2NO/1NC; Form: 1NC/2NO - Main contact configuration: 2 NO, 2 NO - Mounting style: DIN Rail, Panel - Termination: Screw terminals - Enclosure: Enclosed; IP20 - Series/Frame: XT; Frame Size B - Standards/Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS - Frequency: 50/60 Hz
