AGPtek 280kg 620LBs Holding Force Electric Magnetic lock for door access control system Electromagnet Fail-Safe NC Mode

Description:
An electromagnetic lock, magnetic lock, is a locking device that consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts.it is possible to bypass the lock by disrupting the power supply.
According to the different doors, sometimes will need U brackets or L&Z brackets to support mounting. Can work with networking access control system.
The whole system includes electric lock,power supply, access controller, exit button,door bell or RFID cards.
Application:
These products are widely applied in access control system and related applications.
Specifications:
Lock Size: 250Lx46.8Wx25.2H(mm)
Armature plate: 179Lx38Wx11H(mm)
Holding Force: 280kg(620lbs)
Mode: NC (locked whilst power supply is operating), fail safe mode
Voltage: DC12V
Current Draw: 0.15A~0.45A
Safety function: Built-in voltage spike suppressor
Opening Mode: 90 degree swinging door
Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.
Net Weight: 1.784kg

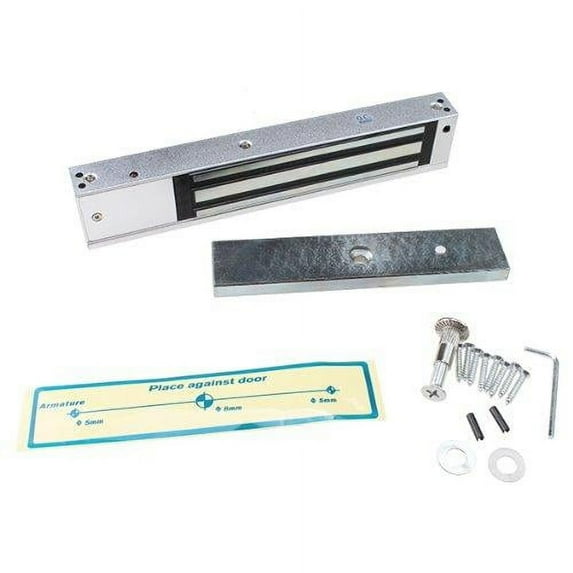

Package Include:
1x Magnetic Door Lock main body 280kg Strong Force(NC mode)
1x Armature faceplate
1x package Mounting hardware kit
1x Manual
