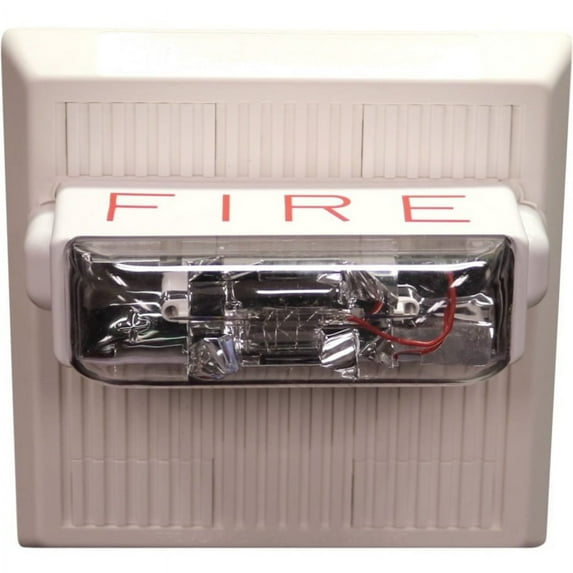

Eaton Wheelock HS4-24MCC-FW Horn/Strobe

Name: Eaton Wheelock HS4-24MCC-FW Horn/Strobe
Brand: Eaton
SKU: 49131171
Price: 93.69 USD
Availability: OutOfStock

(No ratings yet)

Key item features

Eaton Wheelock HS4-24MCC-FW Horn/Strobe

Approvals include: UL Standard 1971, UL Standard 464, ULC-S525, ULCS526, California State Fire Marshal (CSFM) and Factory Mutual (FM). See approvals by model in Specifications and Ordering Information
ADA/NFPA/UFC/ANSI compliant
Complies with OSHA 29, Part 1910.165
Field Selectable Candela Settings: Wall Mount 15/30/75/110cd or 35/185cd (Multi-Candela models) and Ceiling Mount 15/30/75/95cd or 115/177cd
Selectable Continuous Horn or Temporal Code 3 (T3)
3 Selectable dBA settings of 90/95/99 dBA
4-Wire Horn Strobe Appliance allows for separate operation of the horn and strobe circuit
24 VDC models with 16 to 33 VDC UL "Regulated Voltage" using filtered DC or unfiltered VRMS input voltage
Mounts flush to standard 4-inch square or double-gang boxes or surface mount to IOB backbox
Synchronize using the Wheelock Sync Modules or panels with built-in sync protocol (Wheelock Patented Sync Protocol)

Specs

Color
White
Power type
DC Supply, Corded Electric
Features
UV Resistant
Brand
Eaton
Light bulb type
Xenon
Volts
33 V

Current price is $93.69

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Description

The Wheelock HS horn and horn strobe appliances are ideal choices for retrofit applications as well as new installations. The HS/HS4 satisfy virtually all requirements for indoor, wall and ceiling mount applications.

The HS horns include a selectable continuous horn tone or temporal pattern (Code 3) with three selectable dBA settings for each tone.

Strobe options include the Wheelock patented MCW Multi-Candela strobe with field selectable candela settings of 15/30/75/110cd or 135/185cd for wall mount and 15/30/75/95cd or 115/177cd for ceiling mount.

The HS4 horn and strobe inputs are electrically isolated to allow for independent operation of the strobe circuit and the horn circuit. The horn and strobe may also be wired in parallel to operate on a single circuit.

These versatile horn and horn strobe appliances may be synchronized using Wheelock DSM Sync Modules, Wheelock Power Supplies or other manufacturers panels incorporating the Wheelock Patented Sync Protocol.

All models are designed for maximum performance, reliability and cost-effectiveness while meeting or exceeding the latest requirements of NFPA 72/ANSI 117.1/UFC and UL Standards 1971 and 464 as well as meeting ADA requirements concerning photosensitive epilepsy

Eaton Wheelock HS4-24MCC-FW Horn/Strobe

Approvals include: UL Standard 1971, UL Standard 464, ULC-S525, ULCS526, California State Fire Marshal (CSFM) and Factory Mutual (FM). See approvals by model in Specifications and Ordering Information
ADA/NFPA/UFC/ANSI compliant
Complies with OSHA 29, Part 1910.165
Field Selectable Candela Settings: Wall Mount 15/30/75/110cd or 35/185cd (Multi-Candela models) and Ceiling Mount 15/30/75/95cd or 115/177cd
Selectable Continuous Horn or Temporal Code 3 (T3)
3 Selectable dBA settings of 90/95/99 dBA
4-Wire Horn Strobe Appliance allows for separate operation of the horn and strobe circuit
24 VDC models with 16 to 33 VDC UL "Regulated Voltage" using filtered DC or unfiltered VRMS input voltage
Mounts flush to standard 4-inch square or double-gang boxes or surface mount to IOB backbox
Synchronize using the Wheelock Sync Modules or panels with built-in sync protocol (Wheelock Patented Sync Protocol)
