Hero image 0 of Blue Sea Systems 8084 AC Main and 6-Position/DC Main and 15-Position Circuit-Breaker Panel, 0 of 2

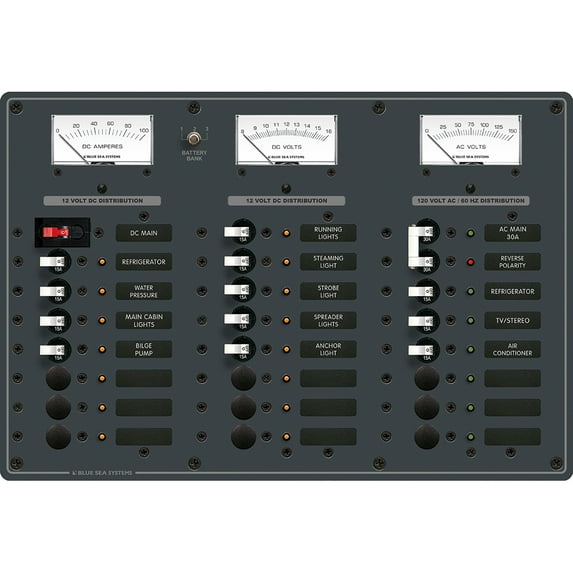

Blue Sea Systems 8084 AC Main and 6-Position/DC Main and 15-Position Circuit-Breaker Panel

Name: Blue Sea Systems 8084 AC Main and 6-Position/DC Main and 15-Position Circuit-Breaker Panel
Brand: Blue Sea Systems
SKU: 48286998
Price: 1030.96 USD
Availability: InStock

3 stars out of 1 review

(3.0)|

1 rating

Key item features

Comprehensive Pre-wiring: This panel features all AC and DC buses installed and fully pre-wired, along with pre-installed label backlighting and all necessary LEDs for immediate use.
Dual Amperage Capacity: The panel supports a maximum amperage of 100 Amperes DC and 50 Amperes AC, ensuring robust power distribution for various marine electrical systems.
Advanced AC Features: Includes a red reverse polarity indicating LED, is ready for an optional 4029 AC Isolation Cover, and integrates a 9353, 0-150 Volt AC Voltmeter.
Robust DC Protection: Equipped with a 100 Amp C-Series circuit breaker for main circuit protection and switching, an 8003, 8-16 Volt DC Voltmeter, and an 8017, 0-100 Amp DC Ammeter.
Expandable DC Voltmeter: The DC system is owner upgradeable to 24 Volts with the addition of an 8240, 18-32 Volt DC Voltmeter, offering flexibility for different power requirements.
Integrated Circuit Breakers: Comes with (1) 30A and (3) 15A AC circuit breakers, and (1) 100A and (9) 15A DC circuit breakers, providing comprehensive circuit protection.

Generated by AI

Specs

Boat accessory type
Circuit Breaker Panel
Brand
Blue Sea Systems
Features
LED Lighting
Material
metal
Size
One Size
Color
Multicolor

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $1,030.96

About this item

Product details

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches Features: Includes set of 30 common AC and 30 common DC labels All AC and DC buses installed, fully pre-wired Label backlighting pre-installed All LEDs installed Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC AC Features: Red reverse polarity indicating LED Ready for installation of optional 4029 AC Isolation Cover 9353, 0-150 Volt AC Voltmeter DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits 8003, 8-16 Volt DC Voltmeter 8017, 0-100 Amp DC Ammeter Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter Specifications: AC Positions: Main +6 DC Positions: Main +15 120 Volts AC 12 Volts DC (1) 30A - (3) 15A AC Circuit Breakers (1) 100A - (9) 15A DC Circuit Breakers *Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

Red reverse polarity indicating LED
Ready for installation of optional 4029 AC Isolation Cover
9353, 0-150 Volt AC Voltmeter

DC Features:

100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC Ammeter
Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

AC Positions: Main +6
DC Positions: Main +15
120 Volts AC
12 Volts DC
(1) 30A - (3) 15A AC Circuit Breakers
(1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product : BLUE SEA 8084 BREAKER PANEL 16-12V 8-120VAC
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8084
UPC : 632085080846
Product : BLUE SEA 8084 BREAKER PANEL 16-12V 8-120VAC

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Warranty

Warranty information

All products have manufacturer's limited warranty. Please refer to product manual for detailed product warranty information. Please, contact manufacturer for further assistance if additional help is needed with your product warranty. Helpful staff are waiting to provide help.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.

Warranty url

http://www.seawide.com/images/BS-8084.png

Warnings

Warning Text

proposition 65 reasons:Yes

WARNING: ⚠ WARNING: This product can expose you to some chemicals, which is known to the State of California to cause For more information, go to www.p65warnings.ca.gov.xn--ivg
