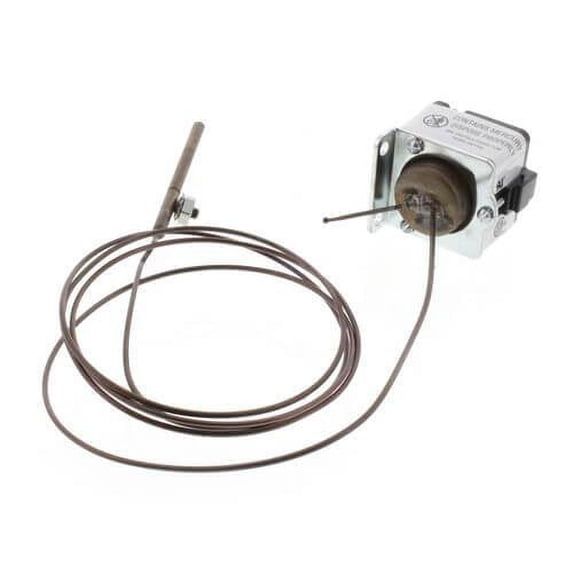

White Rodgers 30A46-5 - Mercury Flame Sensor Designed for Use With White-Rodgers Diaphragm, "Cushioned Power" or "Silent Knight" Valves Having Plug-In Receptacle

Plug-in feature requires no additional electrical connections or mounting devicesSensor combines snap-action SPDT switch and mercury actuated thermal elementUse with natural, manufactured or mixed gases and with LP gases where means are provided for obtaining automatic pilot gas shutoffSensors are recycling type, which require relighting or possible restoration of proper gas pressure to return to operationSPDT switch can energize ignitor circuit to relight pilot (as with rooftop units)SpecificationsTiming: Contacts close approximately 60 seconds after pilot ignition; open approximately 40 seconds after flame is extinguishedVA rating < @> 120V and < @> 240V is 125; VA rating < @> 30V is 90  Product SpecificationsCapillary Length48"Shipping Weight0.25Shipping Width3.60Shipping Length5.60Shipping Height2.60
