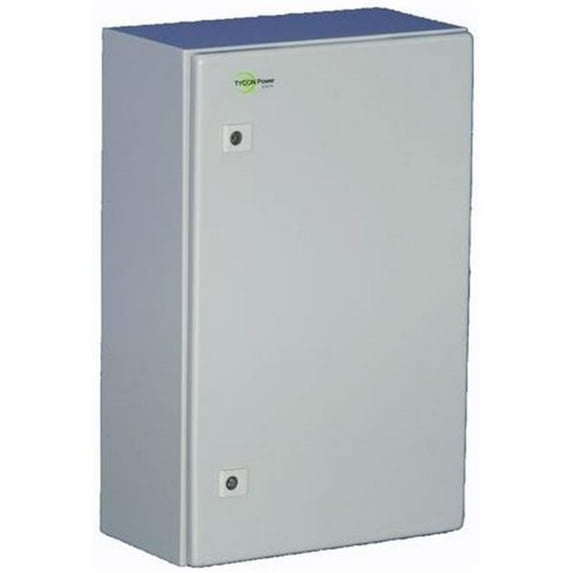

Tycon Systems UPS-ST12-50 UPSPro Series 144W, 600VA Outdoor UPS Systems - 12V 51Ah Gel Battery
Key item features
The UPSPro ST outdoor UPS systems are designed to provide up to 192W backup power. There is enough backup power to keep a wireless base station alive for many hours. The controller provides load control to make sure the batteries don't over-discharge. This greatly extends the life of the batteries. The load output is also regulated to be sure that the voltage doesn't exceed the maximum voltage allowed by the load. The system is powered from 120VAC or 240VAC power. In case of power failure the transition to battery power is seamless and automatic. Recovery is automatic. The controller supports GEL/AGM or wet batteries.
Features- Up to 192w maximum continuous output
- 12vdc, 24vdc and 48vdc systems
- Isolates equipment from power line surges
- High performance gel sealed lead acid batteries
- Choice of 51ah (600va) to 204ah (2400va) battery capacity
- Operating temperature -30c to +60c
- Weatherproof nema 4x / ip65, uv resistant, locking outdoor Enclosure
- Rated Power - 144W 600VA
- Charging System - 120-240VAC
- Battery System - 12VDC at 51Ah
- Typical Backup Time at 20W Load - 24 hours
- Battery Type - Sealed Lead Acid GEL
- POE Output Voltage - N/A
- Secondary Output Voltage - 12VDC at 12A
- Load Disconnect Voltage - 10.7VDC
- Load Re-Connect Voltage - 12.6VDC
- Controller Self Consumption - <5W
- Enclosure Type - Powder Coated Plated Steel
- Enclosure External Size - 24 x 15 x 14 in.
- Enclosure Internal Size - 23 x 14 x 12 in.
- Operating Temperature - 22F to +140F
- Battery Weight - 37 lbs.
Specs
BrandTycon Systems
ColorMulticolor
How do you want your item?
About this item
Product details
The UPSPro ST outdoor UPS systems are designed to provide up to 192W backup power. There is enough backup power to keep a wireless base station alive for many hours. The controller provides load control to make sure the batteries don't over-discharge. This greatly extends the life of the batteries. The load output is also regulated to be sure that the voltage doesn't exceed the maximum voltage allowed by the load. The system is powered from 120VAC or 240VAC power. In case of power failure the transition to battery power is seamless and automatic. Recovery is automatic. The controller supports GEL/AGM or wet batteries.
Features- Up to 192w maximum continuous output
- 12vdc, 24vdc and 48vdc systems
- Isolates equipment from power line surges
- High performance gel sealed lead acid batteries
- Choice of 51ah (600va) to 204ah (2400va) battery capacity
- Operating temperature -30c to +60c
- Weatherpro
The UPSPro ST outdoor UPS systems are designed to provide up to 192W backup power. There is enough backup power to keep a wireless base station alive for many hours. The controller provides load control to make sure the batteries don't over-discharge. This greatly extends the life of the batteries. The load output is also regulated to be sure that the voltage doesn't exceed the maximum voltage allowed by the load. The system is powered from 120VAC or 240VAC power. In case of power failure the transition to battery power is seamless and automatic. Recovery is automatic. The controller supports GEL/AGM or wet batteries.
Features- Up to 192w maximum continuous output
- 12vdc, 24vdc and 48vdc systems
- Isolates equipment from power line surges
- High performance gel sealed lead acid batteries
- Choice of 51ah (600va) to 204ah (2400va) battery capacity
- Operating temperature -30c to +60c
- Weatherproof nema 4x / ip65, uv resistant, locking outdoor Enclosure
- Rated Power - 144W 600VA
- Charging System - 120-240VAC
- Battery System - 12VDC at 51Ah
- Typical Backup Time at 20W Load - 24 hours
- Battery Type - Sealed Lead Acid GEL
- POE Output Voltage - N/A
- Secondary Output Voltage - 12VDC at 12A
- Load Disconnect Voltage - 10.7VDC
- Load Re-Connect Voltage - 12.6VDC
- Controller Self Consumption - <5W
- Enclosure Type - Powder Coated Plated Steel
- Enclosure External Size - 24 x 15 x 14 in.
- Enclosure Internal Size - 23 x 14 x 12 in.
- Operating Temperature - 22F to +140F
- Battery Weight - 37 lbs.
