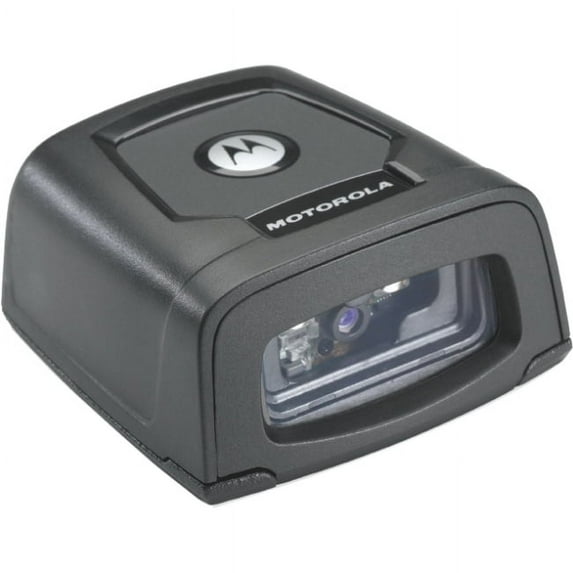

Motorola DS457-HD20009 Zebra Ds457 Fixed Mount Scanner Series
Key item features
Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Motorola DS457. With comprehensive data capture, your workers can scan virtually any bar code - including 1D, 2D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customer-facing areas, such as a retail counter.
Technical InformationConnectivity Technology: Cable
Barcode Dimension: 2D
Barcode Symbology Supported:
1D:
- All Major 1D Bar Codes
2D:
- PDF417
- DataMatrix
- QR Code
- Aztec
- Composite Codes
- Maxi Code
Postal:
- US Postnet
- US Planet
- UK Postal
- Australian Postal
- Japan Postal
Light Source: Laser
Image Sensor: Imager
Depth of Field: 1.20" - 4.80"@3 mil - Code 39, 1.10" - 5.70"@5 mil - Code 39, 1.90" - 9.70"@20 mil - Code 39, 1.70" - 8.30"@13 mil - UPC, 1.60" - 3"@4 mil - Datamatrix, 1.40" - 3.70"@5 mil - Datamatrix, 1.20" - 4.40"@7.50 mil - Datamatrix, 1.50" - 3.10"@5 mil - QR Code, 1.10" - 4"@7.50 mil - QR Code, 1.10" - 4.60"@10 mil - QR Code, 1" - 4.80"@6.67 mil - PDF417, 1.40" - 3.80"@4 mil - PDF417
Scan Pattern: Omni-directional
Interfaces/Ports
Host Interface: USB, Serial
Physical Characteristics
Height: 1.2"
Width: 2.4"
Depth: 2.3"
Weight (Approximate): 3.92 oz
Miscellaneous
Additional Information:
USB Cable separate
Certifications & Standards:
- IP54
- ETL
- VDE
- CETL
- EN60950
- Ctick
- VCCI
- FCC Part 15 Class B
- ICES-003 Class B
- CISPR22 Class B
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 3 Year
Specs
- BrandMotorola
- ColorCable
- Power typeLaser
- Height1.900
How do you want your item?
About this item
Product details
Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Motorola DS457. With comprehensive data capture, your workers can scan virtually any bar code - including 1D, 2D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customer-facing areas, such as a retail counter.
Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Motorola DS457. With comprehensive data capture, your workers can scan virtually any bar code - including 1D, 2D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customer-facing areas, such as a retail counter.
Technical InformationConnectivity Technology: Cable
Barcode Dimension: 2D
Barcode Symbology Supported:
1D:
- All Major 1D Bar Codes
2D:
- PDF417
- DataMatrix
- QR Code
- Aztec
- Composite Codes
- Maxi Code
Postal:
- US Postnet
- US Planet
- UK Postal
- Australian Postal
- Japan Postal
Light Source: Laser
Image Sensor: Imager
Depth of Field: 1.20" - 4.80"@3 mil - Code 39, 1.10" - 5.70"@5 mil - Code 39, 1.90" - 9.70"@20 mil - Code 39, 1.70" - 8.30"@13 mil - UPC, 1.60" - 3"@4 mil - Datamatrix, 1.40" - 3.70"@5 mil - Datamatrix, 1.20" - 4.40"@7.50 mil - Datamatrix, 1.50" - 3.10"@5 mil - QR Code, 1.10" - 4"@7.50 mil - QR Code, 1.10" - 4.60"@10 mil - QR Code, 1" - 4.80"@6.67 mil - PDF417, 1.40" - 3.80"@4 mil - PDF417
Scan Pattern: Omni-directional
Interfaces/Ports
Host Interface: USB, Serial
Physical Characteristics
Height: 1.2"
Width: 2.4"
Depth: 2.3"
Weight (Approximate): 3.92 oz
Miscellaneous
Additional Information:
USB Cable separate
Certifications & Standards:
- IP54
- ETL
- VDE
- CETL
- EN60950
- Ctick
- VCCI
- FCC Part 15 Class B
- ICES-003 Class B
- CISPR22 Class B
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 3 Year
