Rafes Stainless Steel Security Mortise Lock set For Wood/metal Gate Door

Suit for Home gate/door,apartment, hotel, office and commercial building door

High quality, good finish.

60x85mm large lock-case, copper gourd-shaped cylinder with 3 keys,
#304 stainless steel panels and handle,
cylinder and handling are easy to dissemble for replace.
Spring Latch is Reversible for left and right handle.

Keep the entry doors on your commercial or residential property secure. The lock features a Stainless steel for durability, and a deadbolt offers excellent security for your entry door.

Specifications:

• Exterior: stainless steel with cylinder recess, 10-1/4" x 2" stainless steel plate with two set screws. Two piece 5" stainless steel handle.
• Cylinder: 2-3/4" long solid brass, 6 pin with 2 keys.
• Strike: 1/2" x 1" x 5/8" thick, 5/8" curved lip.?Conforms to ANSI spec., A115.1.
• Bolt: 3/4" x 1-3/4" x 3/8" thick
• Door Thickness: 1-5/8" to 2-1/4" standard.

• A=3-1/4" (82mm) B=6-3/4" (170mm)
• C=1" (25mm)          D=1-3/4" (43mm)
• E=1/2" (14mm)      F=1-1/4" (32mm)
• G=2-5/8" (70mm) H=1-3/4" (43mm)
• I=2-1/8" (54mm)    J=1-1/4" (32mm)

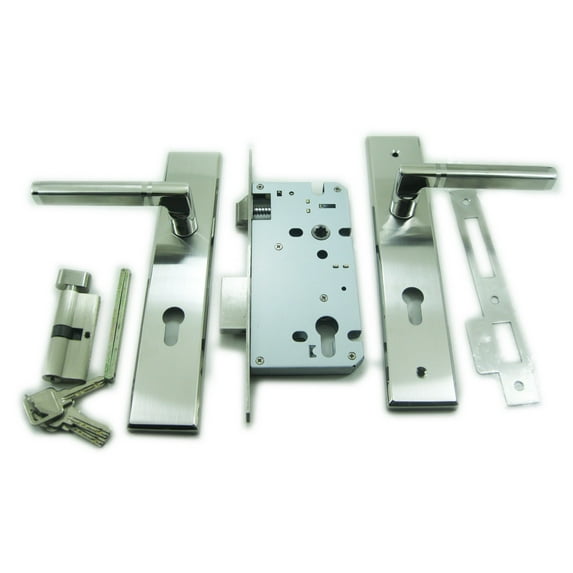

Each package contains:

one inside handle, outside handle, spindle, mortise lock assembly, strike plate, key cylinder with 3 keys and installation screws

as picture.
