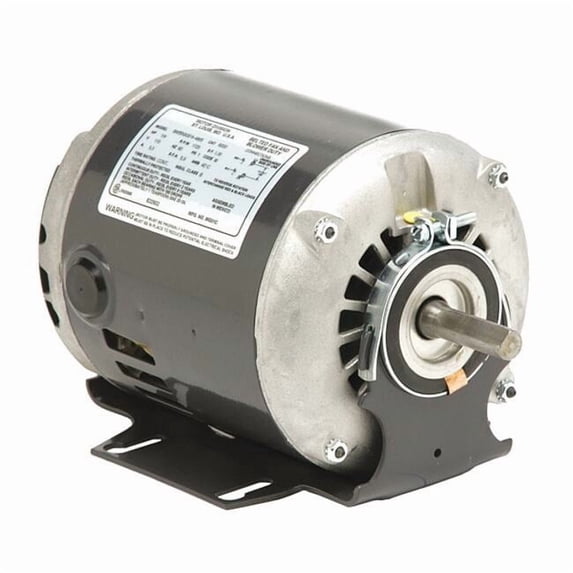

Hero image 0 of Split-Phase Belt Drive Motor, 1/3 HP, 48Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM, 0 of 1

U.S. MOTORS

Split-Phase Belt Drive Motor, 1/3 HP, 48Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

(No ratings yet)

Key item features

Motor Performance: This split-phase belt drive motor delivers 1/3 HP with a nameplate RPM of 1,725, operating at a single phase with one speed.
Electrical Specifications: It supports 115/208-230V AC voltage, drawing 6.6/3.1-3.3 A full load amps, and is usable at 208V but not at 200V.
Physical Attributes: Featuring a 48Z frame, the motor measures 11.100 inches in height, 15.500 inches in length, and 8.500 inches in width.
Operational Features: Designed for continuous duty, it includes auto thermal protection, a 1.35 service factor, and CW/CCW shaft rotation.
Safety Standards: The motor adheres to CSA (156060) and UL (E22922) standards, ensuring compliance and safety.
Enclosure Design: Its open drip-proof enclosure and cradle base mounting make it suitable for fan and blower applications.

Generated by AI

Specs

Horsepower
1/3 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
115 V, 208 V, 230 V
Maximum motor speed
1725 rpm
Amps
6.6 Amps

Current price is $192.30

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Wed, May 20

Sold and shipped by SIM Supply Inc

4.337220762155059 stars out of 5, based on 6088 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

Other sellers

$209.76

+Free shipping

Shipping, arrives by Tue, May 19 to Columbus, 43215

Sold and shipped by Voomi Supply

Free 30-day returns

About this item

Product details

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 6.6/3.1-3.3 A Full Load Amps, 48Z Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base

Standards CSA (156060), UL (E22922)
Height 11.100
Length 15.500
Phase Single
Voltage 115/208-230V AC
Width 8.500
