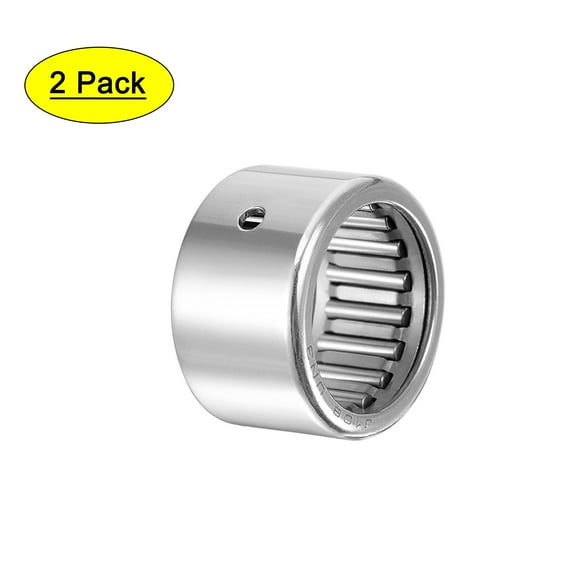

SCE108 Needle Roller Bearings, Drawn Cup Open End 5/8" Bore 13/16" OD 1/2" Width 2pcs

Description:

• Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
• These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
• Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
• For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
• NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.

Specification:

Model: SCE108
Drawn Cup Material: ST14 Steel
Cage Material: ST13 Steel
Needle Roller Material: Chromium Steel (GCr15)
Accuracy: P0
Bore Diameter (Fw): 5/8" / 15.875mm
Outside Diameter (D): 13/16" / 20.638mm
Width: 1/2" / 12.7mm
Dynamic Load Rating: 8100N
Static Load Rating: 12000N
Number of Pack: 2 Pcs
