Hero image 0 of Zyxel 48-Port Gigabit Ethernet Managed L2 Switch, 0 of 3

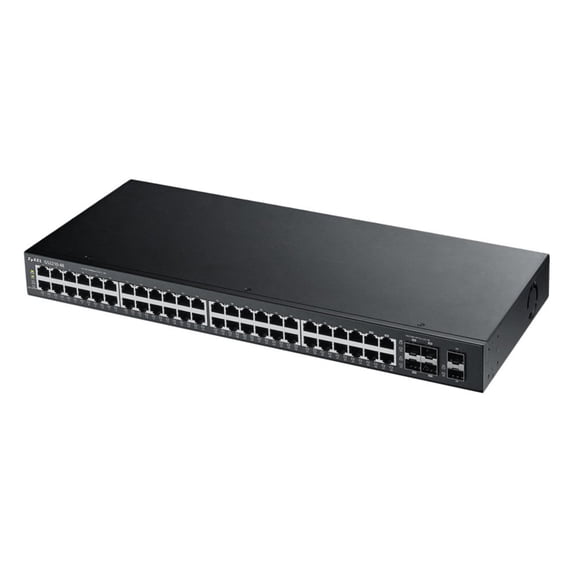

Zyxel 48-Port Gigabit Ethernet Managed L2 Switch
(No ratings yet)
Key item features
- Standard Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3az EEE IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1AB LLDP/LLDP-MED IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol(RSTP) IEEE 802.1s Multiple Spanning Tree Protocol(MSTP) IEEE 802.1Q VLAN tagging IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
- Resilience and Availability IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol(RSTP) IEEE 802.1s Multiple Spanning Tree Protocol(MSTP) IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8 Loop guard Root guard BPDU guard ErrDisable recovery MRSTP (ZyXEL Proprietary) Dual configuration files Dual images
- Traffic Control 802.1Q static VLANs/dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN VLAN ingress filtering LACP algorithm of source/destination IP GVRP L2PT
- Security 802.1X Port security Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers 802.1x VLAN and 802.1p assignment by RADIUS Login authentication by RADIUS Login authentication by TACACS+ TACACS+ accounting Authorization on RADIUS Authorization on TACACS+ SSH v1/v2 SSL Intrusion lock MAC freeze DHCP snooping ARP inspection Static IP-MAC-Port binding Policy-based security filtering Port isolation IP source guard (IPv4/IPv6) IP source guard MAC search Guest VLAN ACL packet filtering (IPv4/IPv6) CPU protection Interface related trap enable/disable (by port) MAC-based authentication per VLAN
- Quality of Service (QoS) No. of hardware queues per port: 8 802.1p queuing method: SPQ, WRR, WFQ Storm control: Broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.3x flow control 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable) DiffServ (DSCP)
- Layer 2 Multicast L2 multicast IGMP snooping (v1, v2, v3) IGMP snooping fast leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling MVR support IGMP filtering IGMP snooping immediate leave IGMP proxy mode & snooping mode selection MLD snooping
- Manageability SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED
- IPv6 Management IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC 4213) ICMPv6 (RFC 4443) Path MTU (RFC 1981) Minimum path MTU size of 1280 (RFC 5095) Encapsulation for maximum PMTU of 1500 Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode
- Device Management ZyXEL iStackingTM Web interface Management through Console, Telnet, SNMP Firmware upgrade by FTP Remote firmware upgrade by FTP/Web Configuration saving and retrieving Multiple logins supported Configure clone Multilevel CLI CLI (Cisco-like) DHCP relay per VLAN DHCP client DHCP option 82 Daylight saving NTP Port mirroring RS-232 out-of-band console port Scheduled PoE
- MIB ZyXEL new private MIB RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMPv2c/v3 MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON group 1, 2, 3, 9 RFC 2011, 2012, 2013 SNMPv2 MIB RFC 2233 SMIv2 MIB RFC 2358 Ethernet-like MIB RFC 2674 bridge MIB extension RFC 2819, 2925 remote management MIB RFC 3621 power Ethernet MIB RFC 4022 management information base for transmission control protocol RFC 4113 management information base for user datagram protocol RFC 4292 IP forwarding table MIB RFC 4293 Management Information Base (MIB) for IP
- Certifications Safety LVD BSMI EMC FCC Part 15 (Class A) CE EMC (Class A) BSMI EN RoHS Level A
- ZyXEL One Network ZON Utility Discovery of ZyXEL switches, APs and gateways* Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with ZyXEL AP Configurator (ZAC) Smart Connect Discover neighboring devices One-click remote management access to the neighboring ZyXEL devices Reset neighboring devices remotely to factory defaults Power cycle neighboring powered devices (PoE switches only)
- Fully managed Layer 2 switching solution
- Complies with IEEE 802.3af PoE and 802.3at PoE Plus
- GbE RJ-45 and GbE SFP connectivity
- High power budget of 375W (24HP/48HP) and 180W (8HP)
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
- Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection
- L2, L3 and L4 filtering, MAC freeze, port isolation, guest VLAN for improved isolation and access control
- Future-proofed with IPv6 support
- Total port count 50 100/1000 Mbps 44 Gigabit SFP 2 Gigabit combo (SFP/RJ-45) 4
- Switching capacity (Gbps) 100
- Forwarding rate (Mpps) 74
- Packet buffer (Bytes) 1.5 M
- MAC address table 16 K
- Input voltage of AC 100 - 240 V AC, 50/60 Hz
- Maximum power consumption (Watt) 40
- Item Dimensions (WxDxH)(mm/in.) 440 x 200 x 44.5/ 17.32 x 7.87 x 1.75
- Item Weight(kg/lb.) 3.04/6.7
- Packing Dimensions (WxDxH)(mm/in.) 512 x 293 x 92/ 20.15 x 11.53 x 3.62
- Packing Weight(kg/lb.) 4.10/9.06
- Included accessories • Power cord • Console cable • Rack mounting kit
- Operating temperature 0°C to 50°C/32°F to 122°F Operating humidity 10% to 95% (non-condensing)
- Storage temperature -40°C to 70°C/-40°F to 158°F Storage humidity 10% to 90% (non-condensing)
Specs
- BrandZyXEL
- Network switch typeManaged Switch, Ethernet Switch
- Number of ports48
- Number of layersL2
- Form factorDesktop
- Model nameGS2210-48
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
Incorporating data, video and voice communications into a single IP network provides more effective communications, centralized IT management, and lower overall deployment cost for the entire organization. This is why an increasing amount of businesses, educational institutions, and hotels are adopting such IP-based services as VoIP, video conferencing, IP surveillance, and IPTV. Yet such converged deployments pose many challenges to the IP network. IT staff need to ensure consistent performance for critical applications, provide sufficient isolation and network security, and shape network traffic to meet the demands of diverse deployments. The ZyXEL GS2210 Series are fully featured Layer 2 Gigabit access switches designed to meet these converged data, video and voice networking challenges. The Series comes in 8-, 24- and 48-port models with a combination of GbE RJ-45, GbE SFP and GbE combo (RJ-45/SFP) connectivity. The PoE models comply with the IEEE 802.3af PoE and 802.3at PoE Plus standards and provide a high PoE power budget. With rich traffic shaping, network isolation, and security features, the GS2210 Series is the perfect L2 access switch solution for converged data, video and voice networking.
- Standard Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3az EEE IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1AB LLDP/LLDP-MED IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol(RSTP) IEEE 802.1s Multiple Spanning Tree Protocol(MSTP) IEEE 802.1Q VLAN tagging IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
- Resilience and Availability IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol(RSTP) IEEE 802.1s Multiple Spanning Tree Protocol(MSTP) IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8 Loop guard Root guard BPDU guard ErrDisable recovery MRSTP (ZyXEL Proprietary) Dual configuration files Dual images
- Traffic Control 802.1Q static VLANs/dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN VLAN ingress filtering LACP algorithm of source/destination IP GVRP L2PT
- Security 802.1X Port security Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers 802.1x VLAN and 802.1p assignment by RADIUS Login authentication by RADIUS Login authentication by TACACS+ TACACS+ accounting Authorization on RADIUS Authorization on TACACS+ SSH v1/v2 SSL Intrusion lock MAC freeze DHCP snooping ARP inspection Static IP-MAC-Port binding Policy-based security filtering Port isolation IP source guard (IPv4/IPv6) IP source guard MAC search Guest VLAN ACL packet filtering (IPv4/IPv6) CPU protection Interface related trap enable/disable (by port) MAC-based authentication per VLAN
- Quality of Service (QoS) No. of hardware queues per port: 8 802.1p queuing method: SPQ, WRR, WFQ Storm control: Broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.3x flow control 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable) DiffServ (DSCP)
- Layer 2 Multicast L2 multicast IGMP snooping (v1, v2, v3) IGMP snooping fast leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling MVR support IGMP filtering IGMP snooping immediate leave IGMP proxy mode & snooping mode selection MLD snooping
- Manageability SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED
- IPv6 Management IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC 4213) ICMPv6 (RFC 4443) Path MTU (RFC 1981) Minimum path MTU size of 1280 (RFC 5095) Encapsulation for maximum PMTU of 1500 Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode
- Device Management ZyXEL iStackingTM Web interface Management through Console, Telnet, SNMP Firmware upgrade by FTP Remote firmware upgrade by FTP/Web Configuration saving and retrieving Multiple logins supported Configure clone Multilevel CLI CLI (Cisco-like) DHCP relay per VLAN DHCP client DHCP option 82 Daylight saving NTP Port mirroring RS-232 out-of-band console port Scheduled PoE
- MIB ZyXEL new private MIB RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMPv2c/v3 MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON group 1, 2, 3, 9 RFC 2011, 2012, 2013 SNMPv2 MIB RFC 2233 SMIv2 MIB RFC 2358 Ethernet-like MIB RFC 2674 bridge MIB extension RFC 2819, 2925 remote management MIB RFC 3621 power Ethernet MIB RFC 4022 management information base for transmission control protocol RFC 4113 management information base for user datagram protocol RFC 4292 IP forwarding table MIB RFC 4293 Management Information Base (MIB) for IP
- Certifications Safety LVD BSMI EMC FCC Part 15 (Class A) CE EMC (Class A) BSMI EN RoHS Level A
- ZyXEL One Network ZON Utility Discovery of ZyXEL switches, APs and gateways* Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with ZyXEL AP Configurator (ZAC) Smart Connect Discover neighboring devices One-click remote management access to the neighboring ZyXEL devices Reset neighboring devices remotely to factory defaults Power cycle neighboring powered devices (PoE switches only)
- Fully managed Layer 2 switching solution
- Complies with IEEE 802.3af PoE and 802.3at PoE Plus
- GbE RJ-45 and GbE SFP connectivity
- High power budget of 375W (24HP/48HP) and 180W (8HP)
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
- Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection
- L2, L3 and L4 filtering, MAC freeze, port isolation, guest VLAN for improved isolation and access control
- Future-proofed with IPv6 support
- Total port count 50 100/1000 Mbps 44 Gigabit SFP 2 Gigabit combo (SFP/RJ-45) 4
- Switching capacity (Gbps) 100
- Forwarding rate (Mpps) 74
- Packet buffer (Bytes) 1.5 M
- MAC address table 16 K
- Input voltage of AC 100 - 240 V AC, 50/60 Hz
- Maximum power consumption (Watt) 40
- Item Dimensions (WxDxH)(mm/in.) 440 x 200 x 44.5/ 17.32 x 7.87 x 1.75
- Item Weight(kg/lb.) 3.04/6.7
- Packing Dimensions (WxDxH)(mm/in.) 512 x 293 x 92/ 20.15 x 11.53 x 3.62
- Packing Weight(kg/lb.) 4.10/9.06
- Included accessories • Power cord • Console cable • Rack mounting kit
- Operating temperature 0°C to 50°C/32°F to 122°F Operating humidity 10% to 95% (non-condensing)
- Storage temperature -40°C to 70°C/-40°F to 158°F Storage humidity 10% to 90% (non-condensing)
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
ZyXEL
Network switch type
Managed Switch, Ethernet Switch
Number of ports
48
Number of layers
L2
Warranty
Warranty information
1 YEAR
