qGround DIY IOT Adafruit Feather Compatible PCB Kit

"Nice to have" for any DIY IOT project, qGround AFC PCB Kit is the part of the newest HW PCB Kits line designed to help hobbyists, makers and all DIYers to build IOT POCs and making HW prototyping easily:

High quality PCB : Double-sided FR-4 PCB with 0.1" hole spacing for DIP integrated circuits, modules, and main controller board;
Dedicated placement for controller board : Well-designed PCB allows to carry Adafruit Feather Compatible MCU board;
Rich set of interface options : Four terminal blocks, Grove I2C and 4-pin JST I2C&Power, low profile 0.1" Adafruit Feather Compatible interface connectors;
More space for prototyping : Proto holes grid across whole PCB space  for DIP components installation and wiring;
Environmental ready :  Developed to be perfectly fit and mounted inside qBox Collection Enclosures for indoor and outdoor DIY IOT projects.

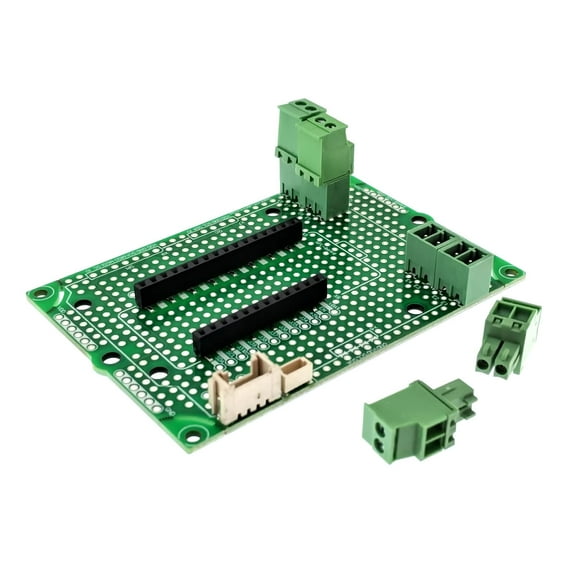

Each qGround AFC PCB kit consists of high-quality double sided PCB with rich set of connectors installed and 3,5mm terminal plugs.

PCB has enough space to keep one Adafruit Feather Compatible (AFC) IOT board, power supply (DC/DC), OLED display and sensor modules, as example, using plain grid proto holes.

Four pluggable 3,5mm terminal blocks to be used for external power and GPIO and interface lines. Board has several options for I2C connection : one Grove I2C and one 4-pin JST (I2C&Power) connectors populated on PCB. And still several DIP 0.1" I2C interface connectors could be placed at PCB.

PCB could be easily placed inside IP65 waterproof qBox enclosure : just remove by plier PCB corners, mount PCB inside an enclosure and secure it by two 3,5mm self-tapping screws.

Using qGround AFC PCB kit the variety of DIY IOT prototyping and POC projects could be done.

What's included:
- High quality prototyping double sided PCB with set of connectors installed;
- Four terminal block plugs.

More info: https://github.com/iotbotscom/docs/blob/main/qGround-AFC-PCB-Kit/IBT-QGX-AFC-X-UM_r10.pdf
