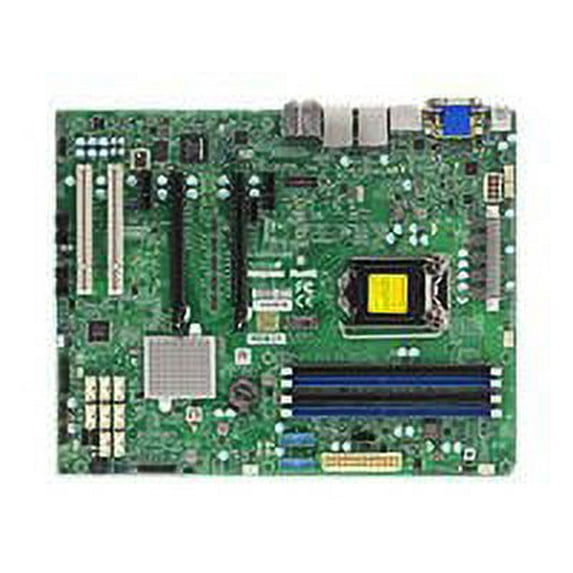

Supermicro X11SAE-F Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX (x11sae-f-b)

Processor & Chipset

Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7, Core i3, Core i5, Xeon, Celeron, Pentium

Memory

Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2133 MHz, 1600 MHz

I/O Controller

Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0

Video

Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2400

Network & Communication

Gigabit Ethernet: Yes

I/O Expansions

Total Number of Expansion Slots: 6
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2

Interfaces/Ports

Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes

Onboard Interfaces

Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 8
Number of Onboard USB 3.0 Ports: 4

Physical Characteristics

Form Factor: ATX
Width: 12"
Depth: 9.6"

Miscellaneous

Compatibility: Supermicro SuperChassis:

Mid/Mini-Tower:

• SC732D4-903B
• SC732D4-865B

4U/Tower:

• SC743TQ-1200B-SQ

Environmentally Friendly: Yes

Warranty

Limited Warranty: 1 Year
