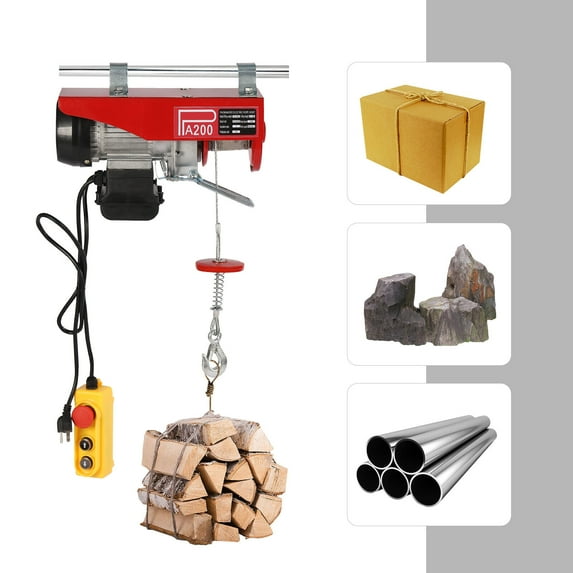

440Lbs Red Electric Hoist Winch Lifting Engine Crane Ceiling Pulley Crane 480W for factories, docks, warehouses

Description

There are problems at work where things are so heavy that it is very difficult to move them purely by hand. The development of modern technology has brought great convenience to mankind, both in life and at work. The powerful motor and the sturdy wire rope provide a powerful lifting capacity and high work efficiency. It will be a great assistant for your lifting work!

Details

Wired Remote Controller: It is equipped with a long wired remote control, which allows you to control the lifting and lowering functions of the electric hoist from a safe distance. Also, the red button on it allows for an emergency stop of the equipment to prevent sudden accidents.

Pure Copper Motor: It adopts a high-powered pure copper motor(480W), with good heat dissipation and stability, providing strong power for lifting. In addition, it operates at low noise, giving you a more comfortable working environment.

Practical Lifting Straps: The package is equipped with two additional lifting straps for securing hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.

Application

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects. The electric hoist can be used for various lifting equipment, such as single column, wall column, crane, etc.

Specifications

Housing Material: Carbon Steel

Finish: Plastic Spray

Hook Material: Galvanised Alloy Steel

Cable Material: Galvanised Carbon Steel

Motor Housing Material: Aluminum

Motor Type: Pure Copper Motor

Color: Red

Model: PA200

Plug Type: US Standard

Voltage: 110V-60Hz

Power: 480W

Insulation Rank: B

Protection Rank: IP40

Load Capacity: 100kg/220lbs(Single Cable), 200kg/440lbs(Double Cable)

Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)

Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)

Work Quota: 20%10min

Product Size: 35*10*12cm/13.7*4*4.7in

Large Hook Length: 11.5cm/4.5in

Small Hook Length: 10cm/4in

Packing Size: 38*16*27cm/14.96*6.29*10.62in

Gross Weight: 9.8kg/21.6lbs

Package Included

1 * Electric Hoist

2 * Lifting Straps

1 * Hook

2 *Mounting Clamp Brackets

1* Wired Remote Control

1* English Manual

All Accessories for Use

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.

3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

4. Please purchase the electric hoist corresponding to the weight required for the job.

5. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.

6. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.

7. Before using the machine, please read carefully all the safety instructions in the product manual.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
