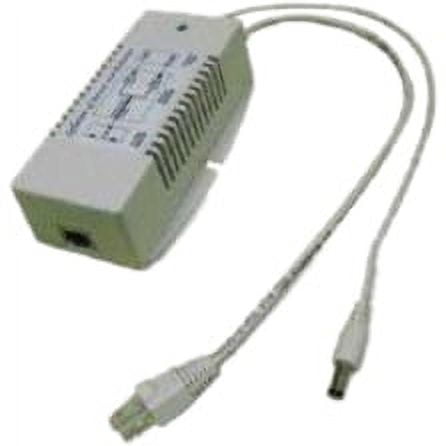

POE-SPLT-2424AC POE Converter/Splitter

The POE-SPLT Active splitters are unique Power Over Ethernet adapters which converts a DC POE input voltage to AC or DC regulated output voltages. The output is provided on a standard 5.5 mm./2.1 mm. barrel connector on a 14 in. cable or in the case of the 80W unit, on a wire terminal connector. Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.

• Converts POE input to DC or AC output
• Outputs up to 80W
• Runs cameras and other 24VAC 40W devices from 24VDC POE and battery systems

• Output Voltage - 24VAC
• Output Current - 1.7A @ 24VAC
• Output Power - 40W
• Output Connector - 5.5 mm. / 2.1 mm. Barrel Connector
• Output Cable Length - 14 in.
• Load Regulation - 5%
• Line Regulation - 1%
• POE Input (RJ45) - 18 - 36VDC (4 pairs)
• Ethernet Speed - 10/100MB
• Efficiency - 75% Min
• EMC Standards - FCC Class B NE55022 Class B
• Isolation Voltage - 1500VDC
• Isolation Resistance - 100M Ohms Minimum
• Operating Temperature - 20 to +60°C
• Operating Humidity - 5% - 90% non condensing
• Storage Temperature - 40 to +80°C
• 28VDc
• 5.5 x 2.1 connector
