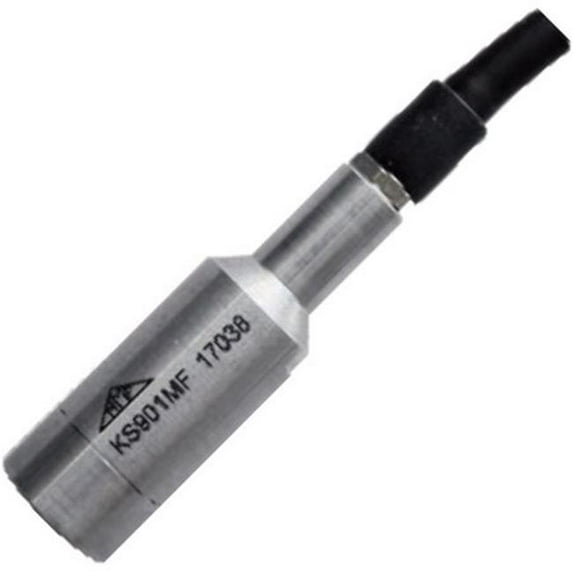

NTi Audio NTI-600-010-347 Vibration Sensor KS901MF ICP Powered Accelerometer with Magnetic Base & Heavy Duty Connection Cable

The NTi 600 010 347 is a lightweight uniaxial piezoelectric accelerometer has been designed for analyzing the vibrations of devices with slight to medium excursions. With a weight of 24 g it is mounted to the device under test (DUT) via the built-in magnet.

• Uniaxial precision accelerometer with compression ceramic
• Vibration analysis over a wide amplitude & frequency range
• ICP output allows long cables under harsh EMI conditions
• Sturdy stainless steel housing
• Mounting via build-in magnet

• Design: Piezo compression ceramic
• Power supply: ICP, 2 to 20 mA
• Sensitivity: typ. 100 mV/g ±20%
• Residual noise: 0.4 mg
• Linear frequency range: 0.2 Hz to 10 kHz (±3 dB)
• Measurement range: ±60 gpk
• Temperature range: -10 to +100 °C (14 to 212° F)
• Case: D x L = 12 x 39 mm, stainless steel
• Protection grade: IP60
• Mounting: built-in magnet head
• Magnet force: 45 N
• Cable: L = 3 m, with BNC connector
• Weight: 1 lbs
