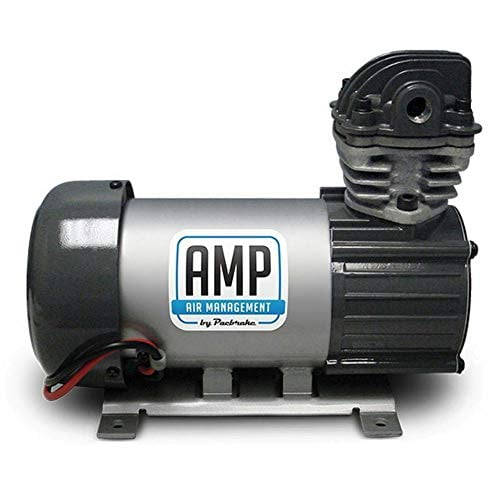

Pacbrake 12V HP625 Series AMP Air Compressor (Vertical) - Universal - HP10625V

(No ratings yet)

Key item features

Pacbrake's heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower.
A copper wire wound permanent magnet motor.
Oil-less design with sealed bearings.
Compressor Size: (LxWxH) 11.5" x 6" x 9.5" [293 mm x 153 mm x 242 mm]

Specs

Horsepower
3/4
Brand
Pacbrake
Volts
12
Weight
20 lb

Current price is $378.12

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Pacbrake HP10625V AMP HP625 12V Air Compressor for universal air tanks

*We keep this item in stock for immediate shipment. Place your order before 10am EST on a weekday and we'll ship the same business day*

Part Number: HP10625VPacbrake HP625 12V Air Compressor (Vertical pump head)Pacbrake’s heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower and are offered in two pump head configurations: vertical and horizontal.Pacbrake air management systems are designed to meet your demands. Send us your technical requirements, and let our engineers build you a system that exceeds them. We have the products, expertise and after sales support. Whether you require large volume – low pressure, low volume – high pressure or a combination of both, we have the experience to build a system specifically for you. COMPRESSOR FEATURES:

A copper wire wound permanent magnet motor
Oil-less design
Sealed bearings
Cast aluminum cylinder head
Hard anodized aluminum sleeve
PTFE piston ring
Mountable in any orientation
COMPRESSOR SPECIFICS:
Head Configuration: Vertical
Duty Cycle: 100% (1 Hour @ 100 psi)
Max Working Pressure: 150 psi [1034 kPa]
Voltage: 12 VDC
Size: 11.5" x 6" x 9.5" (LxWxH)
[293 mm x 153 mm x 242 mm]
Weight: 18.5 lbs [8.39 kg]

Compressor Highlights:

Universal Applications
All Pacbrake compressors have a max working pressure of 150 psi and are an oil-less design
They contain sealed bearings, a PTFE piston ring & a copper wire wound permanent magnet motor
Perfect for a multitude of air applications: air suspension, air horns, inflatables, flat tires & small air tools

Pacbrake's heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower.
A copper wire wound permanent magnet motor.
Oil-less design with sealed bearings.
Compressor Size: (LxWxH) 11.5" x 6" x 9.5" [293 mm x 153 mm x 242 mm]

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Horsepower

3/4

Brand

Pacbrake

Features

Additional Information: AMP HP625 12V Air Compressor (Vertical pump head) | Guranteed Fitments: None

Volts

Warranty

Warranty information

2/24,000 Yr/Mi

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
