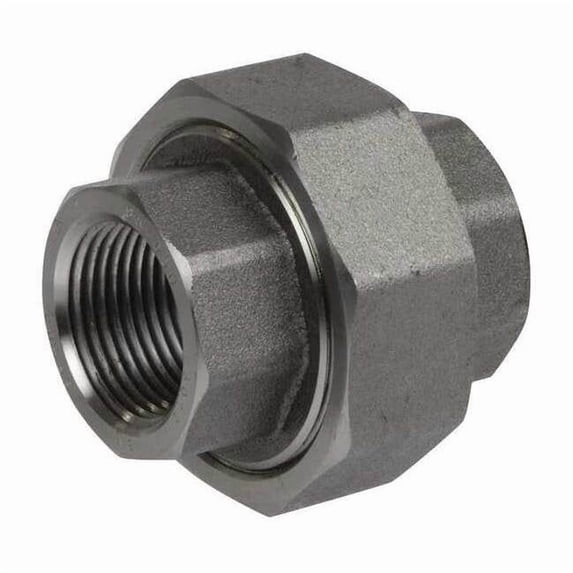

Manufacturer Varies 1/4" FNPT 304 SS Threaded Union 2UA95

The ZORO SELECT - 2UA95 is a 304 stainless steel pipe union designed to join two 1/4-inch pipe ends with female NPT threaded connections. This three-piece mechanical fitting (consisting of the body, nut, and mating seat or gasket) enables connection and disconnection without rotating the pipes. Constructed from corrosion-resistant stainless steel, the union is rated for operation up to 2900 psi at 100°F and up to 2500 psi steam at 350°F and conforms to ASTM-A-182 for material, ANSI/ASME B1.20.1 for threads, and meets MSS SP-83 standards. Key Features: - Nominal pipe size: 1/4 inch on both ends with female NPT connections- Class 3000 pressure rating- Maximum pressure: 2900 psi at 100°F- Maximum steam pressure: 2500 psi at 350°F- Thread size: 18 threads per inch on both ends- Does not include pre-applied thread sealant or seals
