Hero image 0 of Audison AP5 PRIMA Series 5" 50W RMS (150W Peak Power Handling) 4-Ohms Woofer, 0 of 5

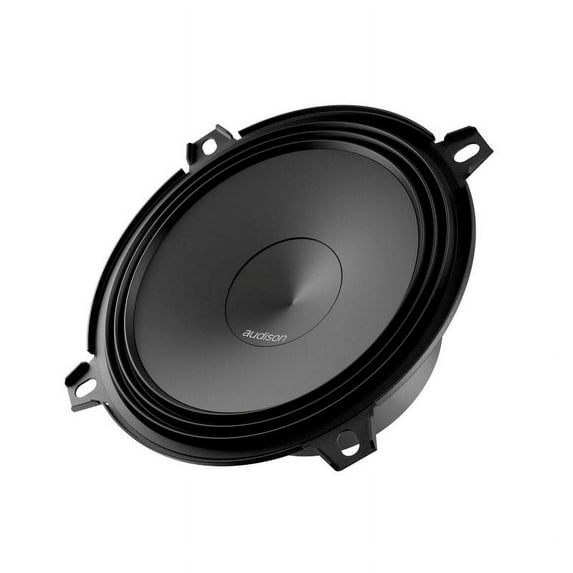

Audison AP5 PRIMA Series 5" 50W RMS (150W Peak Power Handling) 4-Ohms Woofer

(No ratings yet)

Key item features

32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control.
Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
Reduced mounting depth, providing ease of installation in OEM placements.
TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
Developed with the KLIPPEL suite.
Comp: Woofer
Size: 130 mm (5″)
Power Handling:
50 W Continuous Power
150 W Peak Power
50 W Continuous Power
150 W Peak Power
Impedance: 4 ohm Impedance
Frequency Response: 70 ÷ 5k Hz
Sensitivity: 93 dB/Spl
Magnet: High density flux ferrite
Dome: Water-repellent treated paper cone
UPC: 8018823111768
Weight: 4
Authorized Internet Dealer

Specs

Size
5"
Car speaker size class
5"
Rms power rating
50 W
Peak audio power handling
150 W
Loudspeaker sensitivity
93 dB/Spl
Freq range
70 5k Hz

Current price is $249.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $29.00

4-Year Plan - $43.00

How do you want your item?

Ships to

Arrives between May 23 - May 26

Sold and shipped by OnlineCarStereo

4.279411764705882 stars out of 5, based on 68 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Audison Prima 5" 50W RMS (150W Peak Power Handling) 4-Ohms Impedance Woofer We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order! Audison_AP5 “Triple Wave” Profile AP 5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofers don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control.
Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
Reduced mounting depth, providing ease of installation in OEM placements.
TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
Developed with the KLIPPEL suite.
Comp: Woofer
Size: 130 mm (5″)
Power Handling:
50 W Continuous Power
150 W Peak Power
50 W Continuous Power
150 W Peak Power
Impedance: 4 ohm Impedance
Frequency Response: 70 ÷ 5k Hz
Sensitivity: 93 dB/Spl
Magnet: High density flux ferrite
Dome: Water-repellent treated paper cone
UPC: 8018823111768
Weight: 4
Authorized Internet Dealer

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Size

Car speaker size class

Rms power rating

50 W

Peak audio power handling

150 W

Warranty

Warranty information

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
