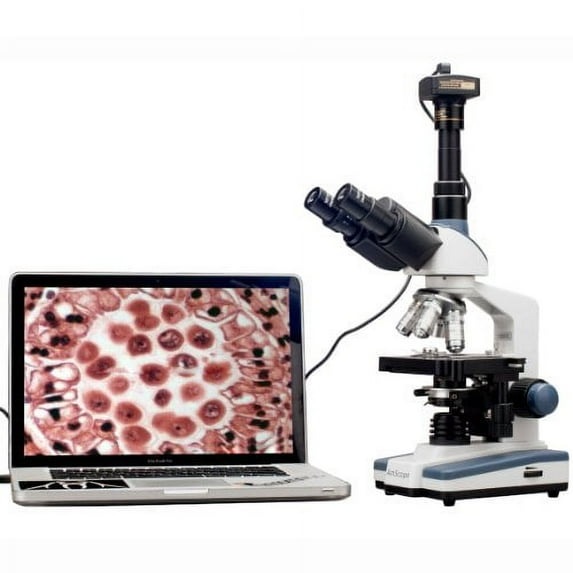

AmScope 2000X LED Lab Trinocular Compound Microscope w 3D Mechanical Stage + 10MP Camera New

Our new trinocular compound microscope with digital camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf trinocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with retail value $1900.

Features :

• 30 degree inclined 360 degree swiveling Siedentopf trinocular head
• High quality precise optical glass elements
• Easy to attach a microscope camera or digital imager
• Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF20X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

• Specifications :

• Eyepieces: widefield, WF10X and WF20X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling trinocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
• - Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

• Camera Specifications:

• Sensor: Aptina MT9J003
• Sensor Type: CMOS
• Sensor Size: 6.44x4.616mm
• px Size: 1.67
• Resolution: 10.0MP
• Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684
• Sensitivity: 0.31 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

• Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
