AmScope 3.5X-90X Articulating Stereo Microscope with 54-LED Light + 10MP Digital Camera New

(No ratings yet)

Key item features

Optical Magnification: Offers a 3.5X-90X continuous zoom magnification range with crisp, sharp images and a 26:1 zoom ratio.
Flexible Articulation: Features a versatile heavy-duty articulating arm with a clamp, covering a large working area for diverse applications.
Integrated Illumination: Includes a 54-LED ring light providing bright, even, and cool illumination for optimal viewing.
Digital Imaging: Equipped with a 10MP USB digital camera for capturing still images and video, with multi-platform software compatibility (Windows, Mac, Linux).
Ergonomic Design: Boasts a 45-degree inclined, 360-degree swiveling trinocular head, 30mm super widefield high-eyepoint eyepieces, and adjustable interpupillary distance for comfortable observation.
Generous Workspace: Provides an 8" (200mm) large working distance, suitable for various industrial and biological inspection tasks.
Advanced Software: Windows software offers image-development, measurement tools, image-stitching, and extended-depth-of-focus capabilities.

Generated by AI

Specs

Standard optical microscope type
Stereo
Microscope head type
Trinocular
Maximum magnification
40x
Minimum magnification
3.5x
Rec. use
Biological
Features
LED Lights

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $1,123.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

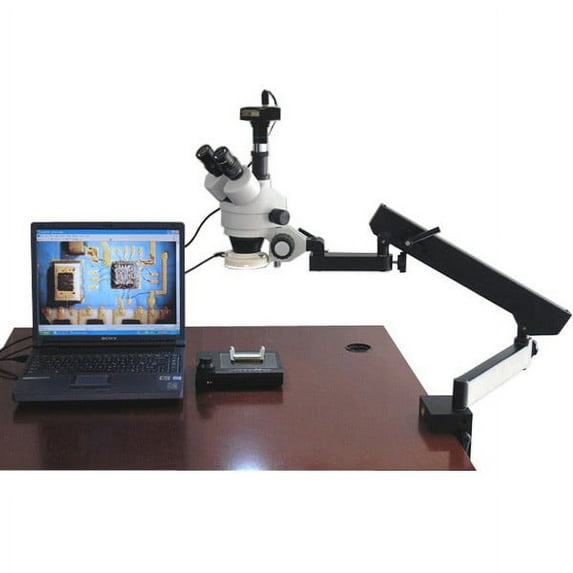

This is a great turnkey package of an articulating stereo inspection microscope that includes a 3.5X-90X trinocular zoom microscope with an articulating arm stand, a 54-LED ring light and a 10MP USB digital camera. Offering sharp, crystal clear images and great flexibility, it is a perfect inspection microscopy system for many applications. With 30mm super widefield, high-eyepoint eyepieces and reduction Barlow lenses, the microscope gives very large zoom magnification range of 26:1 and large working distance of 8". The LED ring light provides bright, even and cool illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is great for both industrial and biological applications. It is an ideal instrument for engineers, researchers, gemologists, and anyone in semiconductor and electronic industries.

Features:

High Quality Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port

You can have well-focused clear images on your PC or video screen while you get the images in the microscope in focus

Don't need to switch between the trinocular port and the eyepieces

Don't need to re-focus the microscope after each "switch"

30mm Super Widefield 10X Eyepieces

Sharp stereo images over a super widefield view

High resolution with great flatness and contrast

Crystal clear original true color images

Versatile Heavy-Duty Articulating-Arm

Coming with clamp

Covering large working area

3.5X-90X (26:1) Continuous Zoom Magnification Range

45-Degree Inclined Microscope Head

8" (200mm) Large Working Distance

Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos

Accurate Alignment Ensuring Fatigue-Free Comfortable Observation

Both Ocular Tubes with Adjustable Diopters

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

All Metal Mechanical Components

Rubber Eye-guards Included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Head: 45-degree inclined, 360-degree swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20

Barlow Lens: 0.5X and 2.0X

Objective: 0.7-4.5X

Zoom Range: 26:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)

Working Distance: 8" (200mm)

Illumination: 54-LED

Power input: 110-240V, 50-60HZ, Automatic Switching

Accessories: eye-guards

Camera Specifications:

Sensor: Aptina MT9J003

Sensor Type: CMOS

Sensor Size: 6.44x4.616mm

px Size: 1.67

Resolution: 10.0MP

Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684

Sensitivity: 0.31 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

3.5X-90X zoom magnification power with crisp sharp images
2-1/2" (65mm) super widefield view and 8" (200mm) large working distance
Flexible articulating arm with clamp
