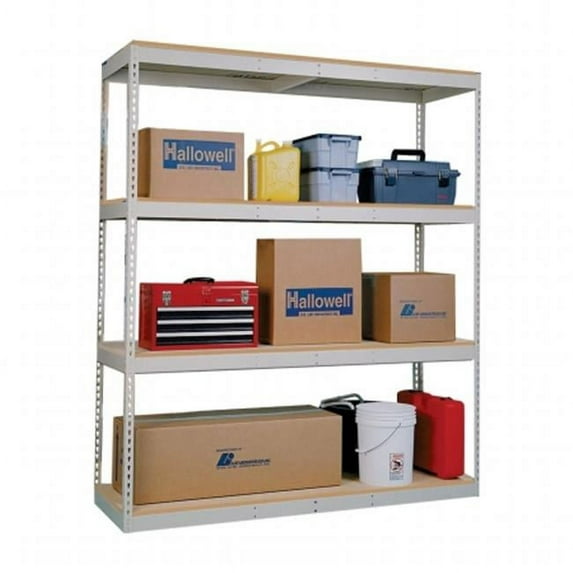

Hallowell DRCC963084-4S Rivetwell, Double Rivet Boltless Shelving with Center Support 96 inch W x 30 inch D x 84 inch H 729

Rivetwell - Double Rivet UnitsStarter units consist of four standard angle posts, two left-to-right standard double rivet anglechannel beams per level and two front-to-back standard double rivet angle beams per levelAdder units consist of two standard T-Posts, two left-to-right standard double rivet anglechannel beams per level and two front-to-back standard double rivet angle beams per level Channel beam units are provided with left-to-right double rivet angle beams at bottom levelRivetwell Boltless Shelving Specification- Angle Post TOWNHALLShall be 1-12 in x 1-12 in x 14 gauge cold rolled steel corner post uprights Perfect for standard load situationsT-Post Shall be 3 in x 1-78 in x 14 gauge cold rolled steel intermediate uprights This post is used for both standard duty and heavy-duty add-on unitsDouble Rivet Angle BeamShall be 2-34 in x 1 in x 16 gauge cold rolled steel This shelf beam is essential for stability of standard units therefore, is used on all four sides at the top and bottom levels Can also be used front and back or on all four sides of intermediate levels to increase unit stability and load capacity Double Rivet Channel BeamShall be 1 in x 3 in x 1 in x 14 gauge cold rolled steel Maximized left-toright shelf capacity is achieved using our double rivet channel beams in lieu of double rivet angle beams These beams cannot be used at the bottom levelCenter SupportShall be 2-34 in x 1 in x 1 in x 16 gauge cold rolled steel Used to provide additional shelf support front-to-back by bolting between double rivet beams at pre-punched locations Ideal for wider spansDouble Row and Top TieShall be 2-12 in x 1-14 in x 14 gauge cold rolled steel Used to space back-to back units and to top-tie rows across aisles for added stabilityWall TieShall be 2-12 in x 1-14 in x 14 gauge cold rolled steel Used to secure units to wall and provide space between wall and unit hardware to attach to wall not includedRecord Storage Box SupportsShall be 1 in x 1-12 in x 1 in x 16 gauge Used in place of particle board decking to support boxes and maintain neat organized storage Supplied with nylon button fastenersFoot PlatesShall be 1-12 in x 1-12 in x 3 in x 14 gauge For use in anchoring Angle and T-Posts to floor Hardware included for attaching to posts Hardware to anchor to floor not included Anchor holes are 38 in diameterParticle Board DeckingShall be type 1-M-2, 58 in industrial gradeColor for all steel componentsHallowell #729 Parchment- Dimensions - 96 W x 30 D x 84 H in- Color - Parchment SKU: HLWL6382
