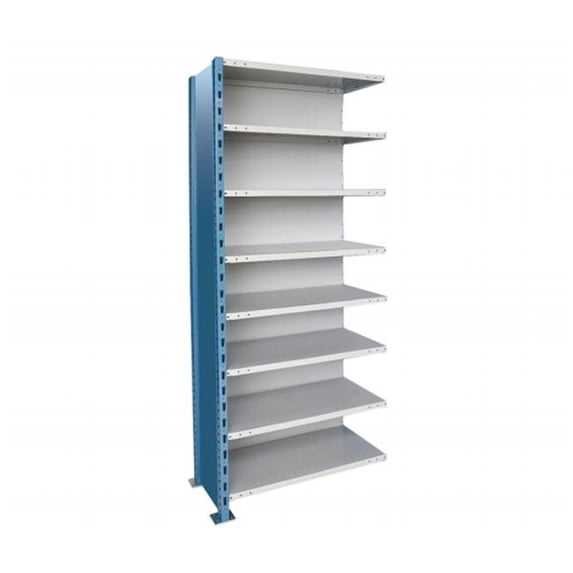

Hallowell AH5523-1807PB Hallowell H-Post High Capacity Shelving 36 in. W x 18 in. D x 87 in. H 707 Marine Blue Posts and Sides

Each Hi-Tech High Capacity heavy-duty shelf has a tubular welded box beam in front and rear for maximum strengh, exclusive triple bend side flanges for even more strengh, lapped and welded corners, and the tops of shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts.

• Type - adder
• Shelf capacity - 450
• Dimension - 36 W x 18 D x 87 H in.

• Fabricated from 14 gauge cold rolled steel and roll formed into an 1-1/2" wide x 2-15/16" deep tubular section. Rear flanges are welded on 6"centers to provide maximum strength. Sides of the post are punched 1-1/2" on center with 3/8" x 7/8" rectangular slots to receive shelf clip. Rear flanges of the post have holes punched on 3" centers for the attachment of side sway braces or field attached solid side panels. Post front is slotted on 3” centers for beam connection and combination clip attachment and is punched on 3” centers for field attached back connector strips. Provide (2) H-Posts between each adjoining section and at row ends.

• 1 in. x 11 gauge cold rolled steel strip with safety edges to eliminate sharpness. The center of two identical pieces shall be punched to be bolted together forming an "X". Ends shall be radiused and punched for attaching to front and back posts. Provide between adjoining sections and at row ends for open-type shelving applications.

• 1 in. x 11 gauge cold rolled steel strip with safety edges to eliminate sharpness. The center of two identical pieces shall be punched to be bolted together forming an "X". Ends sha- SKU: HLWL6064
