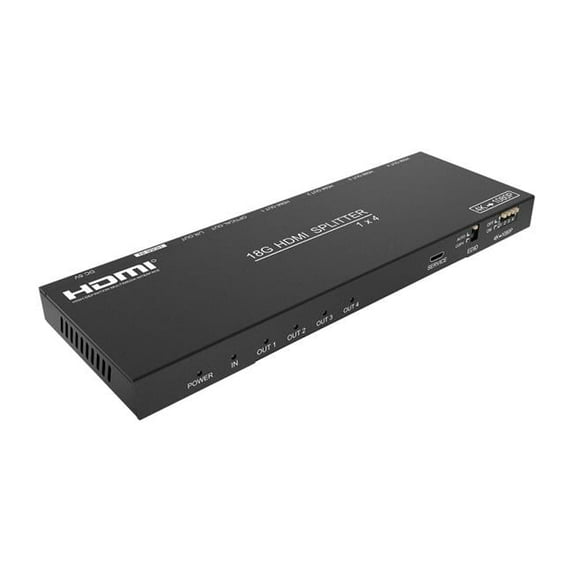

4-Port 4K 60Hz HDMI Splitter with Down-Scaler with Digital & Analog Audio Output, Black

The 1X4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P) function.

• HDMI 20b, HDCP22/HDCP14 compliant
• Supports output bypass and 4K->1080P downscaler function via dial switch on panel
• Supports optical audio pass-through format about LPCM 20/21/51CH, Dolby 51, Dolby True HD, Dolby DD+, DTS 51, DTS-ES 6/DTS-HDMA 51, DTS HD-HRA 51
• Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
• EDID can be selected COPY and AUTO modes via dial switch on panel
• Supports digital and analog audio extract output from HDMI source
• Supports analog audio PCM 20

• Mechanical Color: Black
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolutions: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
• Color Depth: 4K60Hz 8-bit, 1080P 12-bit
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• L/R Audio Formats: PCM 2.0
• Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
• ESD Protection: Human-body Model ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
• Connections Input ports: 1xHDMI Type A [19-pin female]
• Connections Output ports: 4xHDMI Type A [19-pin female] 1xL/R Audio out [3.5mm Stereo Mini-jack] 1xOptical out [S/PDIF]
• Mechanical Housing: Metal Enclosure
• Mechanical Dimensions (L x W x H): 180mm(W)x62mm(D)x14mm(H)
• Mechanical Power supply: Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified)
• Mechanical Power Consumption: 3.5W (max)
• Mechanical Operation temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Mechanical Storage temperature: (-20°C ~ 60°C / -4°F ~ 140°F)
• Mechanical Relative humidity: 20~90% RH [no condensation]
• Weight: 1 lbs
