Hero image 0 of AmScope 7X-45X Dissecting Circuit 144-LED Zoom Stereo Microscope + 1.3MP Digital Camera New, 0 of 4

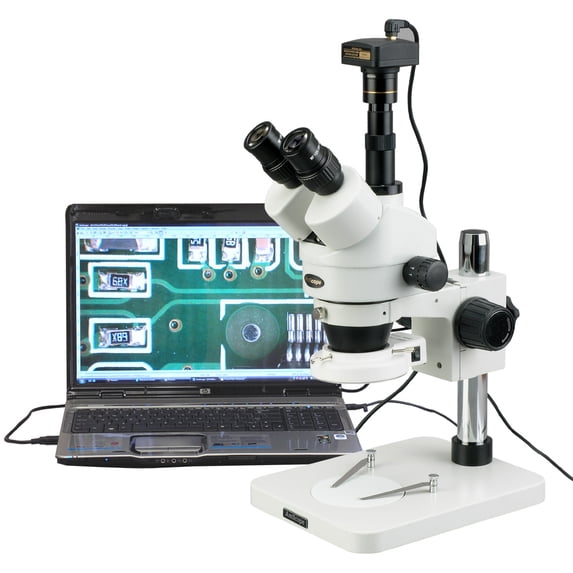

AmScope 7X-45X Dissecting Circuit 144-LED Zoom Stereo Microscope + 1.3MP Digital Camera New

(No ratings yet)

Key item features

7X-45X Super widefield zoom magnification power with crystal clear images
1-1/4" (33mm) super widefield view and 4" (100mm) working distance
1.3MP digital camera with advanced editing &
measuring software for Windows XP/Vista/7/8/10

Specs

Standard optical microscope type
Stereo
Microscope head type
Trinocular
Maximum magnification
45X
Minimum magnification
7X
Rec. use
Biological
Features
LED Lights

Current price is $627.99

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Fri, May 29

Sold by PatternPro Seller

Fulfilled by Walmart

4.678708981666923 stars out of 5, based on 13021 seller reviews(4.7)

Report an issue with this seller

Free 90-day returns

More seller options (1)

Starting from $627.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

This is a trinocular stereo microscope with a 144-LED compact ring light and a 1.3MP USB digital camera. The microscope has a super widefield optical system that provides a very large zoom magnification power (6.5:1) which offers a large working distance (4", 100mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light has a compact design with a built-in dimmer, providing cool, even and bright LED illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release. It is OEM'd by the same technicians and on the same production line that makes optical instruments for Leica, Zeiss, Nikon and Olympus. This microscope is in a factory sealed box with a retail value over $1,700.

Features:

A perfect LED stereo inspection microscope with a 1.3MP color digital camera

Variable, cool, even and bright 144-LED ring illumination

7X-45X super wide zoom magnification power

4" (100mm) extremely large working distance

High resolution with great flatness and contrast, giving sharp and clear images

Trinocular head with 45-degree inclined 360-degree swiveling eye tubes

30mm SUPER widefield high-eyepoint eyepieces with a 20 mm field of view

Sharp stereo erect images with a wide field of view

Crystal clear, original true color microscope images

Dual eye tubes with adjustable diopters

Contemporary table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eyeguards included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Head: 360 degree rotatable 45 degree inclined trinocular

Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM

Zoom Range: 0.7X-4.5X

Diopter Adjustment: +/- 5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 4" (100mm)

Field of View: 1-1/4" (33mm) in diameter

Illumination: 144-LED compact ring light

Power Input: 110-240V, 50-60HZ, automatic switching

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

Round Plate: 3-3/4" (95mm) in diameter

Accessories: a pair of eye-guards

Camera Specifications:

Sensor: Aptina MT9M111

Sensor Type: CMOS

Sensor Size: 4.6x3.7mm

px Size: 3.6

Resolution: 1.3MP

Frame Rate: 15@1280x1024, 26@640x512, 50@320x256

Sensitivity: 1.0V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

7X-45X Super widefield zoom magnification power with crystal clear images
1-1/4" (33mm) super widefield view and 4" (100mm) working distance
1.3MP digital camera with advanced editing &
measuring software for Windows XP/Vista/7/8/10

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Standard optical microscope type

Stereo

Microscope head type

Trinocular

Maximum magnification

45X

Minimum magnification

Warranty

Warranty information

Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
