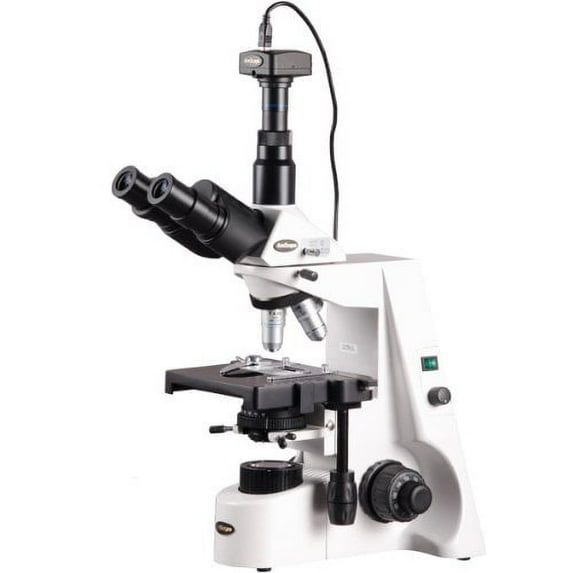

AmScope 40X-2500X Infinity Kohler Biological Compound Microscope + 8MP Camera New

This is a professional infinity trinocular compound microscope with superior extreme widefield infinity optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity objectives, 3-D mechanical stage with coaxial coarse & fine focusing, wide band voltage (85V-230V) Kohler halogen illumination, and a 8MP digital camera. The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. This microscope provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X and 2500X.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is a superb instrument for clinic offices, veterinary labs and research laboratories, and comes in a factory sealed box.

Features :

An Affordable Infinity Optical Microscopy System with Kohler Illumination!

Backward Nosepiece Allowing Spacious Room for Comfortable Observation

Large Mechanical Stage with Two-microslide Specimen Clamp

Humanized Configuration Design Providing Comfortable Operation

Front Open Light house Framework for Easy Access to Light Bulb

Fully Coated Optical System with High Resolution

Crystal Clear Sharp Images

Precise Mechanical Control System

Backward Nosepiece Design for Spacious Operation Room

Kohler Illumination System with Field Diaphragm for Lighting Control

30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head

Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X and 2500X

Intensity-Variable Transmitted Halogen Lighting System

Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Control Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter on Ocular

Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish

Four Infinity Objectives: 4X, 10X, 40X, 100X

Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 25X

Large Double Layer Mechanical Stage with Stain Resistant Finish

Upward Stage Stopper to Protect Objectives and Slides

Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications :

Optical System: infinity corrected

Nosepiece: backward, ball bearing quadruple

Head: Siedentopf trinocular head, 30-degree inclined

Eyepiece: WH10X/22mm and WH25X/9

Objectives: infinity objective 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Stage: 7.1"x5.9" (180mm x 150mm)

Stage Traveling Range: 3"x 2" (75x50mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Condenser: N.A. 1.25, swing with iris diaphragm filter

Illumination: Kohler, halogen 12V/20W

Power Supply: 85V-230V wide voltage, CE certified
