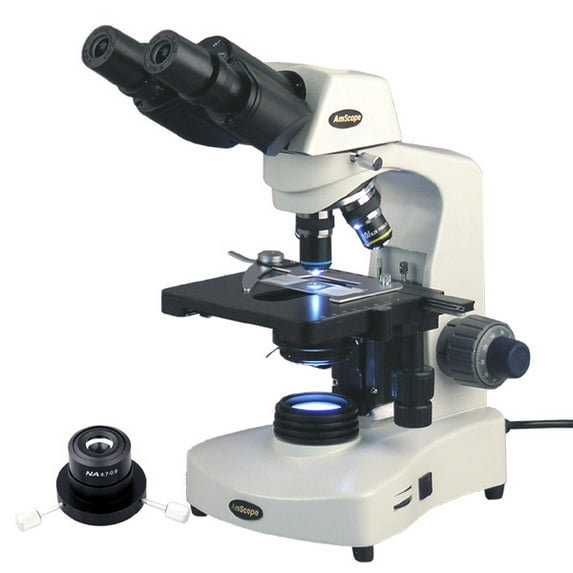

AmScope 40X-2000X 3W LED Siedentopf Binocular Darkfield Compound Microscope New
(No ratings yet)
Key item features
- 40x-2000x high quality darkfield and brightfield microscope
- Four darkfield and eight brightfield power settings
- Dry darkfield and brightfield Abbe condensers included (oil darkfield sold separately)
Specs
- Standard optical microscope typeCompound
- Microscope head typeBinocular
- Maximum magnification2000x
- Minimum magnification40x
- Rec. useMedical, Biological
- FeaturesLED Lights
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
This darkfield and brightfield binocular compound microscope is designed for clinical examination and teaching demonstration in medical field, veterinary offices, laboratories and colleges. It comes with Siedentopf binocular head, darkfield and brightfield condensers, backward nosepiece, 3D mechanical stage and powerful 3W LED illumination. It offers eight darkfield magnification powers and eight brightfield settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X). It is an ideal instrument for biological, veterinary, bacteriological and pharmaceutical applications.
Features :
- High Quality Professional Grade Darkfield and Brightfield Microscope
- Eight Levels of Brightfield Magnifications: 40X-80X-100X-200X-400X-800X-1000X-2000X
- Four Levels of Darkfield Magnifications: 40X-80X-100X-200X
- - Expandable to Eight Magnifications with DK-OIL100 oil condenser (sold separately
- Perfect for Clinics, Vets, Doctors and College Students
- 30° Inclined 360° Swiveling Siedentopf Binocular Head
- 3D X-Y Mechanical Stage with Stain Resistant Finish and Slide Clips
- Coaxial Coarse Fine Focusing with Tension Control and Stopper
- Crystal Clear High Definition Sharp Images
- Fully Coated Optical System with High Resolution
- Dual Side Focusing Control Knobs
- Built-in LED Illumination System with Adjustable Brightness
- Abbe Condenser with Iris Diaphragm Swing-Out Filter Holder
- Four DIN Achromatic Objectives
- Two Sets of Eyepiece Included
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Solid Metal Frame Construction with Stain Resistant Enamel Finish
- Fuse and a Bottle of Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standard.
- Excellent Five (5) Year Factory Warranty
- Lowest Price for the Same Guaranteed or the Difference Back!
- Satisfaction Guaranteed or Your Money Back!
-
Specifications :
- Nosepiece: quadruple
- Head: 30° inclined Siedentopf binocular head 360° swivelling
- Interpupillary Distance: 48mm-75mm
- Diopter: Adjustable left eye tube
- Eyepiece: WF10X18 WF20X
- Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring,oil)
- Stage Dimensions: 110mm x 140mm
- Stage Traveling Range: 78mm X 40mm
- Focusing: Coaxial coarse fine, with tension control and stopper
- Abbe Condenser: NA=1.25 with iris diaphragm filter
- Illumination: variable 3W LED
- Power Supply: 110V/220V
- Filter: blue and green
- Accessories: Eye-guards, dust cover, immersion oil
-
Packing List :
- Binocular Microscope Head
- Microscope Body Frame with Base
- Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
- One Pair of 10X Widefield Eyepieces
- One Pair of 20X Widefield Eyepieces
- One Dry Darkfield Condenser
- One Brightfield Condenser (mounted on the microscope)
- Two Color Filters: Blue and Green
- One Dust Cover
- Immersion Oil
- User's Manual
- Shipping Weight: 20 lbs
- 40x-2000x high quality darkfield and brightfield microscope
- Four darkfield and eight brightfield power settings
- Dry darkfield and brightfield Abbe condensers included (oil darkfield sold separately)
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Standard optical microscope type
Compound
Microscope head type
Binocular
Maximum magnification
2000x
Minimum magnification
40x
Warranty
Warranty information
Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.
