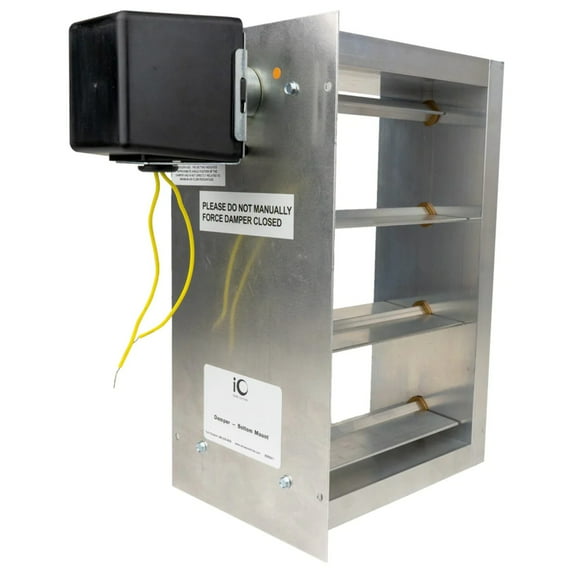

iO HVAC Controls HD-1808-BM 18 x 08 Rectangular Two-Position Zone Damper - 2 Wire Actuator - Bottom Mount

- 18 inch X 8 inch rectangular.

- 5 year warranty.

- Airflow can be right to left or left to right.

APPLICATION:

- Compatible for zone control and other HVAC applications with static pressures less than 1.0” w.c.

CONSTRUCTION:

- 1/16” extruded aluminum frame

- 1/16” extruded aluminum parallel blades

- 1/16” aluminum mounting flange

- Nylon bushings

- Minimum position adjustment

ELECTRICAL:

- 24 Volt, 10 VA, 0.43 Amp powered closed, spring return open actuator

- Also available in powered open, spring return closed

- Motor is impedance protected with no end switches

HD Series The HD Series dampers are extruded aluminum parallel blade dampers complete with a 24 volt spring return actuator. The HD Series dampers can be installed in any position and are compatible with most 24V zoning and ventilation controls. They are rated for duct systems less than 1.0” WC. These dampers have a simple adjustment for limited position. They are a highly universal option for both zoning an ventilation applications.
