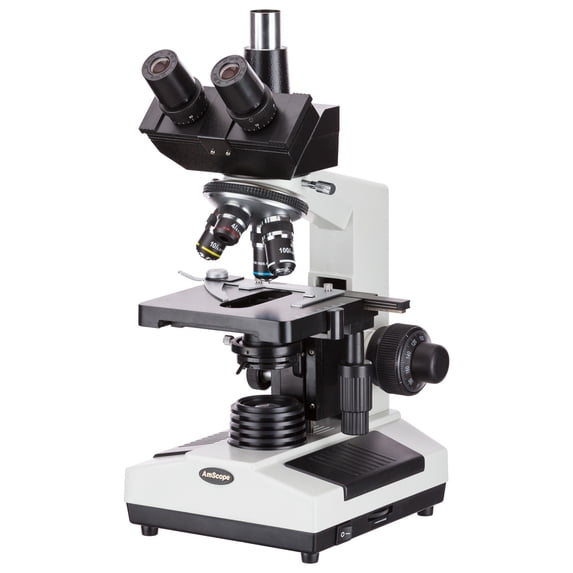

AmScope Doctor Veterinary Clinic Trinocular Biological Compound Microscope 40X-2500X New

This professional trinocular microscope comes with a trinocular sliding head, rack and pinion Abbe condenser with iris diaphragm, and double layer mechanical stage. This microscope is designed for teaching demonstration, clinical examination and research purpose. It offers six levels of magnification: 40X, 100X, 250X, 400X, 1000X and 2500X. The trinocular port allows to add photographic or video capability. This microscope is a perfect instrument for vets, college students, and those in clinic offices and biological labs.

Features:

• Perfect for vets, labs, clinics, universities, and high schools
• High quality professional optical glass elements
• Trinocular port for adding photographic or video capability
• 45 degree inclined 360 degree swiveling trinocular head
• Six (6) levels of magnification: 40X-100X-250X-400X-1000X-2500X
• Four (4) achromatic objectives DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two (2) pairs of eyepieces: WF10X and WF25X
• Large size 3-D double layer mechanical stage with stain resistant finish
• Low position coaxial stage movement controls
• Coaxial coarse fine focusing with CA knob tension control
• Sliding interpupillary distance adjustment
• Ocular diopter adjustable on both eyetubes
• Variable intensity halogen illumination
• High resolution images over a wide field of view
• Metal framework
• Coaxial coarse and fine focus adjustment
• Dual focusing knobs (on both sides)
• Stage upward moving lock protects objectives and slides
• Large stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm filters
• Rack and pinion adjustment condenser
• Product GS and CE approved
• Spare Bulb, Fuse, and Immersion Oil Included
• Manufactured under ISO 9001 Quality Control Standards
• Excellent Five (5) Year Factory Warranty
• Satisfaction Guaranteed or Money Back!

• Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Nosepiece: revolving quadruple
• Eyepieces: wide field WF10X and WF25X
• Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Total Magnification: 40X-100X-250X-400X-1000X-2500X
• Transmitted (lower) Illuminator: 6V/20W Halogen
• Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
• Stage X-Y Stroke (travel range): 3" x 2" (75mm x 50mm)
• Focus Adjustment: coaxial coarse fine knobs on both sides
• Focusing knob can be locked for observation transportation
• Condenser diaphragm: NA1.25 Abbe condenser with iris diaphragm
• Power supply: 110V/220V built-in auto-switching power adapter
• Dimension: 11" x7-1/2" x 15-3/4" (28cm x 19cm x 40cm)
• Net Weight: 10 lbs (4.5kg)
• Package Weight 20 lbs

• Packing List:

• One Trinocular Microscope with 4 DIN Objectives
• One Pair of Widefield 10X Eyepieces
• One Pair of WF25X Eyepieces
• One Bottle of Immersion Oil
• One Power Cord (US and Canada standard)
• One Mirror for Power Outage
• One Dust Cover
• Three Color Filters
• One Spare Halogen Bulb (6V/20W)
• One Spare Fuse
