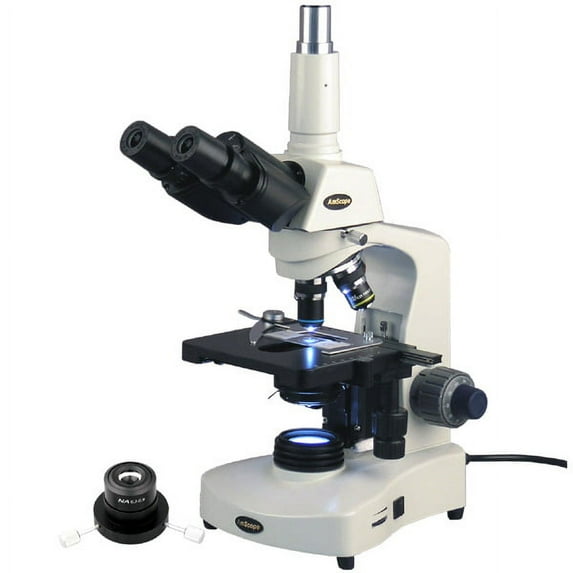

Hero image 0 of AmScope 40X-2000X 3W LED Trinocular Darkfield and Brightfield Compound Microscope New, 0 of 4

AmScope 40X-2000X 3W LED Trinocular Darkfield and Brightfield Compound Microscope New

(No ratings yet)

Key item features

Versatile Illumination: Features both dry darkfield and brightfield Abbe condensers, along with a powerful 3W LED illumination system with adjustable brightness for diverse viewing needs.
Extensive Magnification: Offers eight darkfield and eight brightfield magnification settings, ranging from 40X up to 2000X, suitable for detailed observation.
Professional Optics: Equipped with a fully coated optical system, high-resolution crystal clear images, and four DIN achromatic objectives (4X, 10X, 40X, 100X).
Ergonomic Design: Includes a 30-degree inclined, 360-degree swiveling Siedentopf trinocular head, adjustable interpupillary distance, and diopter for comfortable use.
Robust Construction: Built with all-metal mechanical components, a solid metal frame with a stain-resistant enamel finish, and a 3D mechanical stage with stain-resistant finish.
Precise Control: Features coaxial coarse and fine focusing with tension control and a stopper, along with dual-side focusing control knobs for accurate adjustments.
Comprehensive Accessories: Comes with two sets of wide-field eyepieces (WF10X/18 and WF20X), a color filter, dust cover, and immersion oil.

Generated by AI

Specs

Standard optical microscope type
Compound
Microscope head type
Trinocular
Maximum magnification
2000X
Minimum magnification
40X
Rec. use
Medical
Features
LED Lights

Price when purchased online

Report an issue with this seller

More seller options (2)

Starting from $585.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

This darkfield and brightfield trinocular compound microscope is designed for clinical examination and teaching demonstration in medical field, veterinary offices, laboratories and colleges. It comes with Siedentopf trinocular head, darkfield and brightfield condensers, backward nosepiece, 3D mechanical stage and powerful 3W LED illumination. It offers eight darkfield magnification powers and eight brightfield settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X 2000X). It is an ideal instrument for biological, veterinary, bacteriological and pharmaceutical applications.

Features :

High Quality Professional Grade Darkfield and Brightfield Microscope

Eight Levels of Darkfield Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

Eight Levels of Brightfield Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

Perfect for Clinics, Vets, Doctors and College Students

30 Degree Inclined 360 Degree Swiveling Siedentopf Trinocular Head

3D X-Y Mechanical Stage with Stain Resistant Finish and Slide Clips

Coaxial Coarse Fine Focusing with Tension Control and Stopper

Crystal Clear High Definition Sharp Images

Fully Coated Optical System with High Resolution

Dual Side Focusing Control Knobs

Built-in LED Illumination System with Adjustable Brightness

Abbe Condenser with Iris Diaphragm Swing-Out Filter Holder

Four DIN Achromatic Objectives

Two Sets of Eyepiece Included

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance

Adjustable Diopter on Ocular

Solid Metal Frame Construction with Stain Resistant Enamel Finish

Fuse and a Bottle of Immersion Oil Included

Manufactured under ISO 9001 Quality Control Standard.

Excellent Five (5) Year Factory Warranty

Lowest Price for the Same Guaranteed or the Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications :

Nosepiece: quadruple

Head: 30 degree inclined Siedentopf trinocular head 360 degree swiveling

Interpupillary Distance: 48mm-75mm

Diopter: Adjustable left eye tube

Wide-field Eyepiece: WF10X18 WF20X

Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring, oil)

Stage Dimensions: 110mm x 140mm

Stage Traveling Range: 78mm X 40mm

Focusing: Coaxial coarse fine, with tension control and stopper

Abbe Condenser: NA=1.25 with iris diaphragm filter

Illumination: variable 3W LED

Power Supply: 110V/220V

Filter: blue and green

Accessories: Eye-guards, dust cover, immersion oil

Packing List :

Trinocular Microscope Head

Microscope Body Frame with Base

Four High Quality DIN Objectives, 4X, 10X, 40X and 100X

One Pair of 10X Widefield Eyepieces

One Pair of 20X Widefield Eyepieces

One Dry Darkfield Condenser

One Brightfield Condenser (mounted on the microscope)

One Color Filter

One Dust Cover

Immersion Oil

User's Manual

Shipping Weight: 20 lbs

A high quality darkfield and brightfield microscopy system
8 darkfield and 8 brightfield power settings up to 2000x
Dry darkfield and brightfield Abbe condensers included

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Standard optical microscope type

Compound

Microscope head type

Trinocular

Maximum magnification

2000X

Minimum magnification

40X

Warranty

Warranty information

Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
